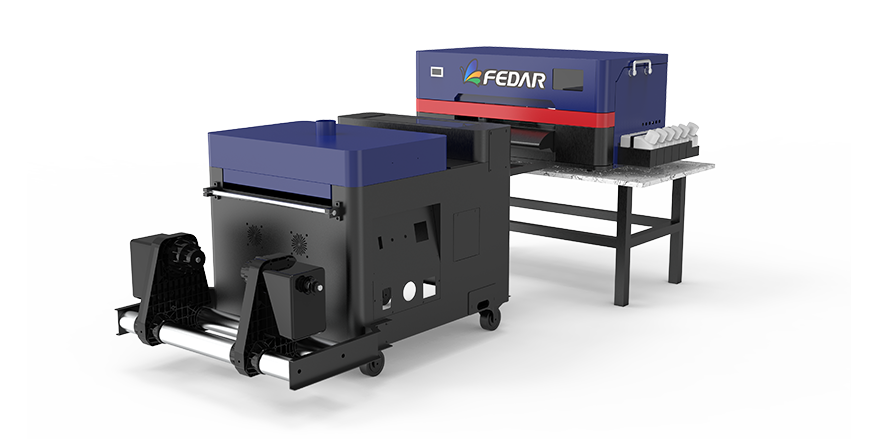

30cm DTF Printer FEDAR FDA3

Model: FEDAR FDA3 DTF Printer
Printhead Quantity: 1
Printhead: Epson F1080-A1
Print Width: 330mm
Print Colors: CMYK+W
Max.resolution（DPI）: 1080DPI
Max speed CMYK: 8pass 1.2㎡/h
Ink Type:Pigment Ink
RIP Software: Riin(Standard), Maintop, CADlink(Fiery), FlexiPRINT(Optional), etc.

Get The Best Price DownLoad Pdf

FEDAR FDA3 DTF Printer
Printhead	Epson F1080-A1		Nozzle Quantity	1080
Printhead Quantity	1		Print Width	330mm
Print Colors	CMYK+W		Print Height	2-5mm
Max. resolution（DPI）	1080DPI		Media	PET Film

Max speed CMYK(1.9m printing width, 5% feather)	8pass	1.2㎡/h
Speed *Tested on linear printing without feather Function	8pass	1.2㎡/h
			Head Moisture	Auto Head Cleaning and Moisturizing
			Method
			Ink Cycle	White Ink Circulation
Bulk Tank Capacity	150ML		Material Transmit	Single Motor System
Ink Type	Pigment Ink		Transmission	Gigabit LAN
			Interface
Max. Media Taking up (40g paper)	100m		Max. Media Feeding(40g paper)	100m
Computer System	Windows 7 and above		File Forms	JPG, TIF, PDF, etc.
Operate Environment	Temp.: 15℃-30℃, Humidity: 35℃-65℃		RIP Software	Maintop, Fiery, FlexiPRINT, etc.

Printer Size	720390320mm		GW(KGS)	42
Package Size	860450460mm		Power Supply	110/220V, 50/60HZ


Computer Configuration	Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk: WG500G GPU: ATI Discrete GPU, Memory: 4G, CPU: Intel I5/I7, G-Ethernet

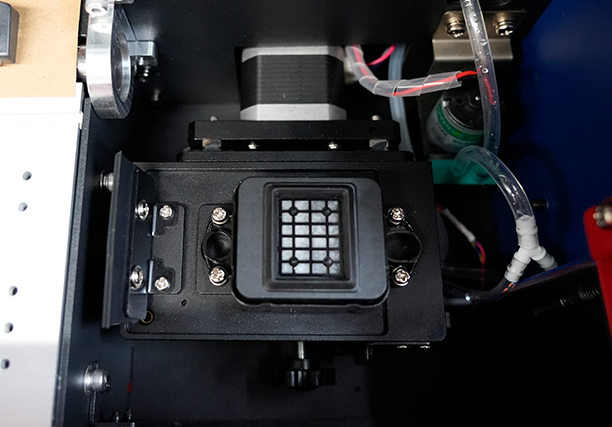

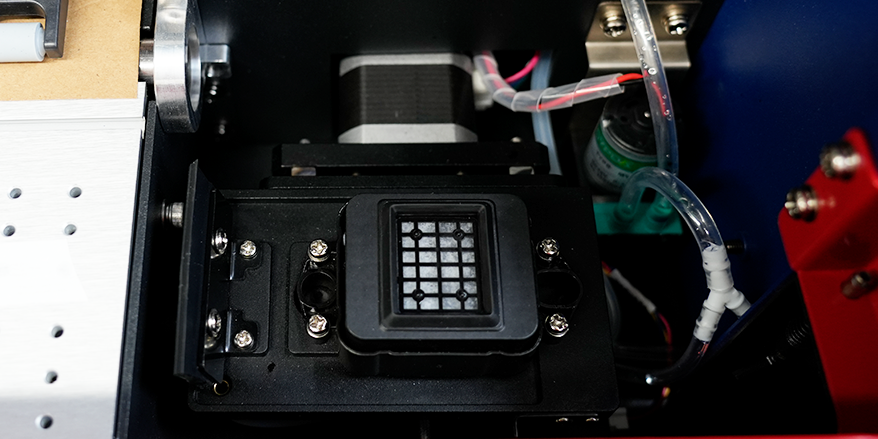

Capping Station

Equipped with advanced moisturizing device, which can pump ink well and keep the ink flow fluently.

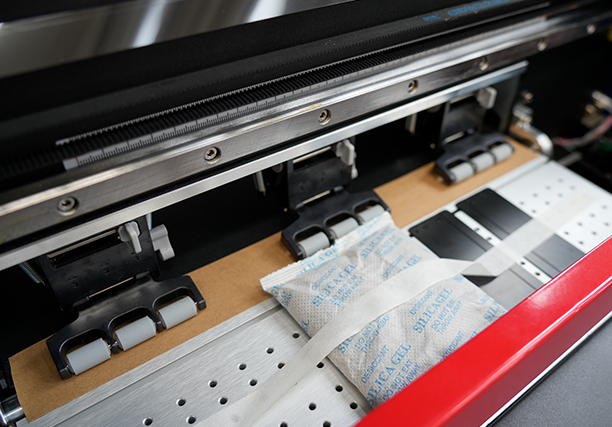

Guide Rail

No noise, more smooth movement, more stable printing, longer service life of the machine.

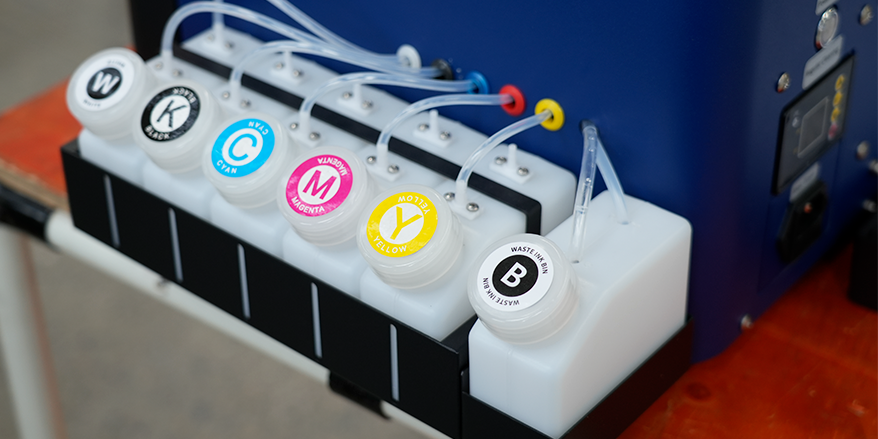

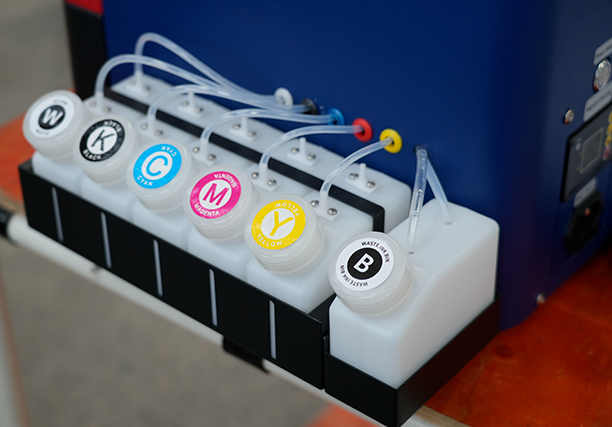

Ink Tank

Bulk tanks with 300ml capacity.
White Ink Circulation

The peristaltic pump noiseless, longer service life.
