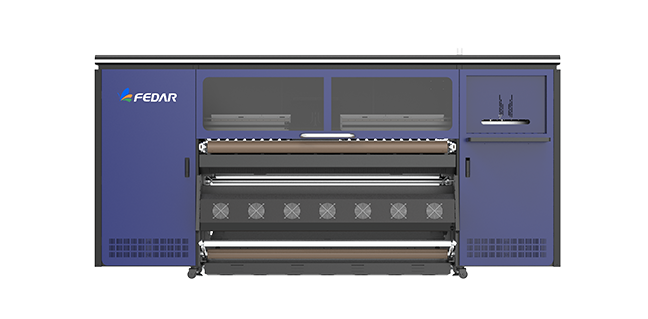

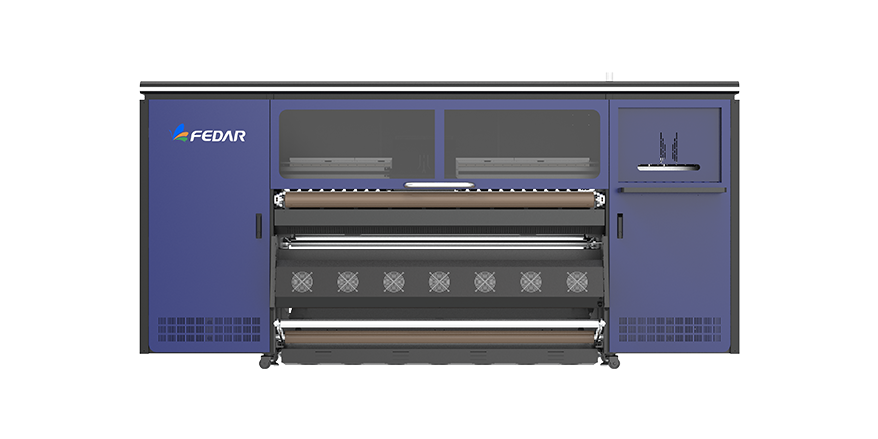

| FEDAR FD6198E-A Sublimation Printer | ||||
| Printhead | Epson I3200-A1 | Nozzle Quantity | 3200 | |
| Printhead Quantity | 8 | Print Width | 1900mm | |
| Print Colors |
CMYK (Optional 8 Colors) |
Print Height | 2-5mm | |
| Max. resolution（DPI） | 3200DPI | Media Transmit | Auto Media Feeding and Taking-up System, Roll to Roll |
|
| Max speed CMYK(1.9m printing width, 5% feather) | 1pass | 370㎡/h | Drying Method | Extra Dryer Device |
| Ink Supply Method | Bulk Tank Sub-tank Ink Supply | |||
| Speed *Tested on linear printing without feather function |
1pass | 370㎡/h | Head Moisture Method |
Auto Head Cleaning and Moisturizing |
| 2pass | 185㎡/h | Print Media | Transfer Paper | |
| Bulk Tank Capacity | 5L/15L | Material Transmit | Inflatable Roller Auto Feeding and Take-up System | |
| Ink Type | Sublimation Ink, Water Based Pigment Ink |
Transmission Interface |
Giga-bit Ethernet Port | |
| Max. Media Taking up (40g paper) | 1500m | Max. Media Feeding(40g paper) | 2000m | |
| Computer System | Win7 64 Bit / Win10 64 Bit | File Forms | TIFF, JPG, PDF, etc. | |
| Operate Environment |
Temp.: 15℃-30℃ Humidity: 35℃-65℃ |
RIP Software | Maintop, FlexiPRINT, ONYX, Neostampa and etc. Maintop7.0(Standard Equipped) | |
| Printer Size |
3830*1550*1850mm |
GW(KGS) | 1400 | |
| Package Size |
3920*1150*2000mm |
Power Supply | 210-230V, 50/60HZ, 16A Print Power: 10.3KW Dryer Power: Max. 8KW |
|
| Computer Configuration | Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU, CPU: Intel i5/i7, Gigabit LAN |
|||
| Standard Configuration | Ink Level Alarm System | |||
Fedar FD6198E-A Sublimation Printer adopts Japanese double THK mute guide rail, moving steadily, longer working life and reducing there sistance and noise of carriage moving during the high speed printing.
This Fedar Digital Textile Printer adopt pneumatic pinch rollers lifting structure design.
Fully sealed capping station, auto cleaning, flash and moisturizing, easy to operate and maintain.
Fedar Sublimation Printer can be upgraded to expand 15-head model and automatic ink supply system. Upgradeable to 4/6 color printing.
The feeding & take-up system is equipped with industrial motor, which adopts precise servo control to make paper moving more accurate.
It is easy and convenient to adjust the printhead height according to different media. And anti collision system installed on both sides of carriage, which automatic detect any force on carriage way to protect the printhead inside.
Intelligent dryer unit, high stability and durability, and easy to operate.

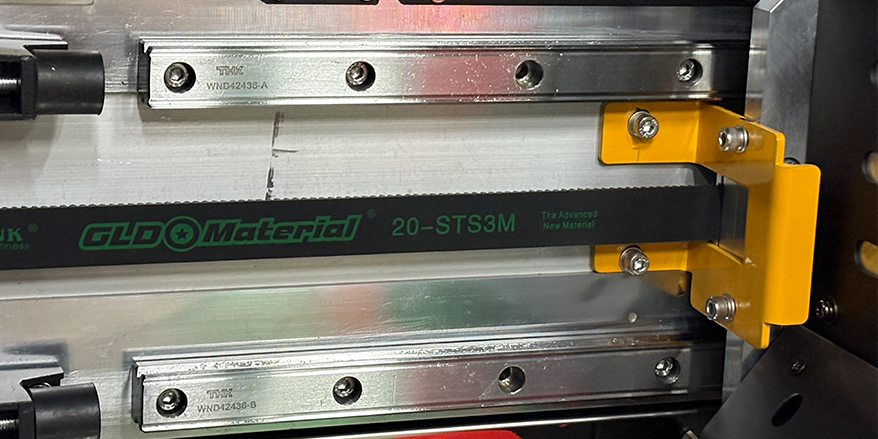

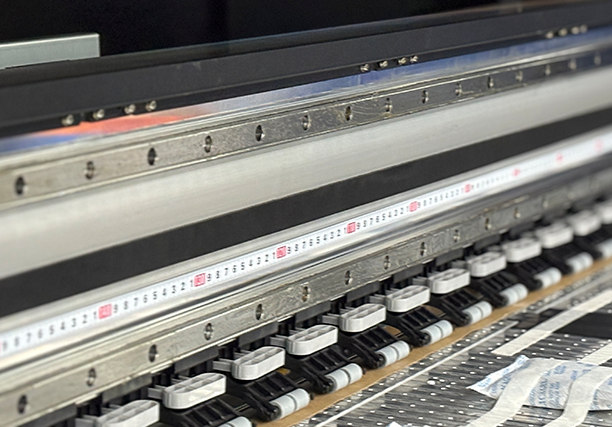

Imported THK Mute Guide Rail

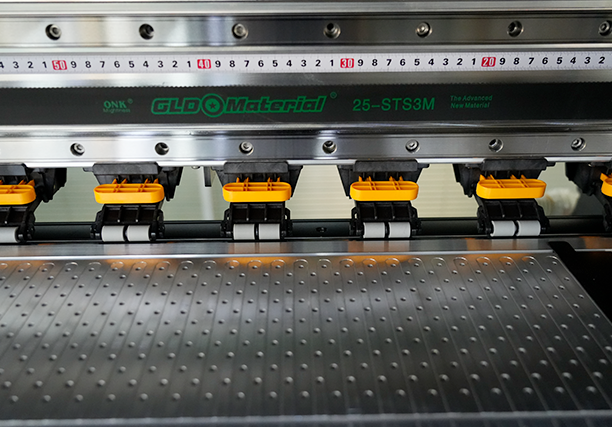

Special-Designed Pinch Rollers

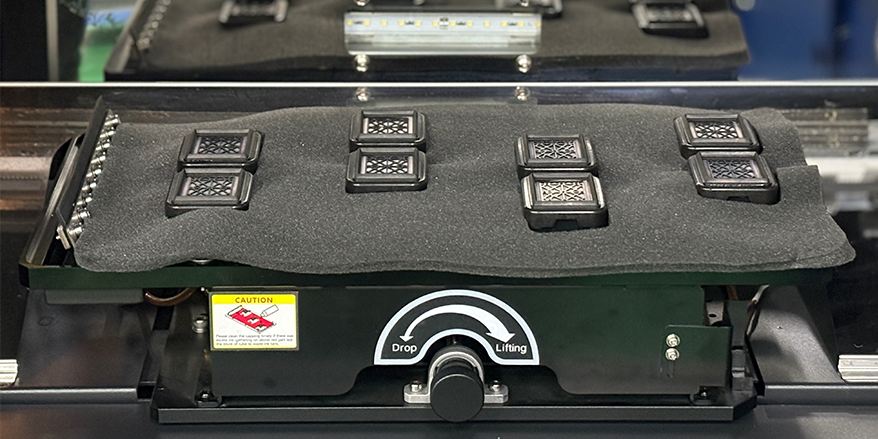

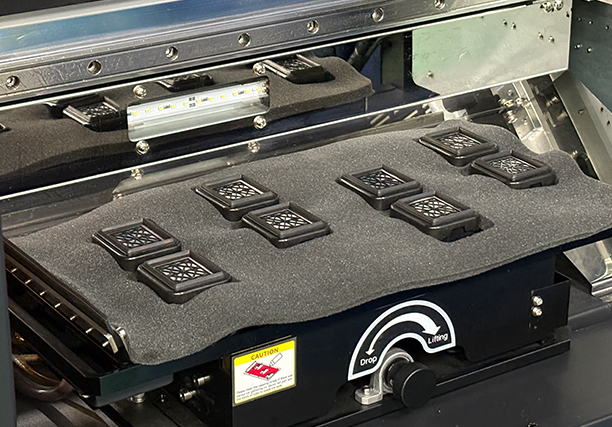

Capping Station

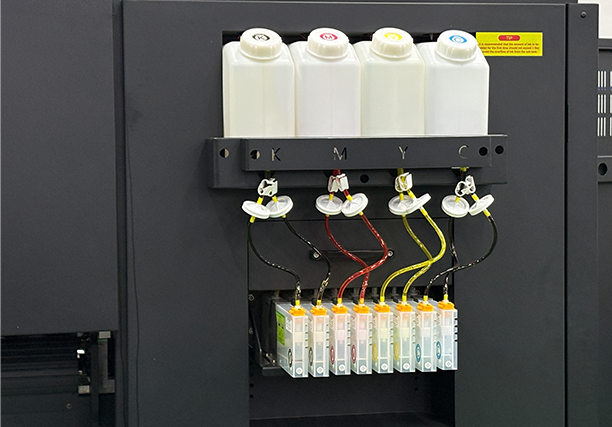

Ink Supply System

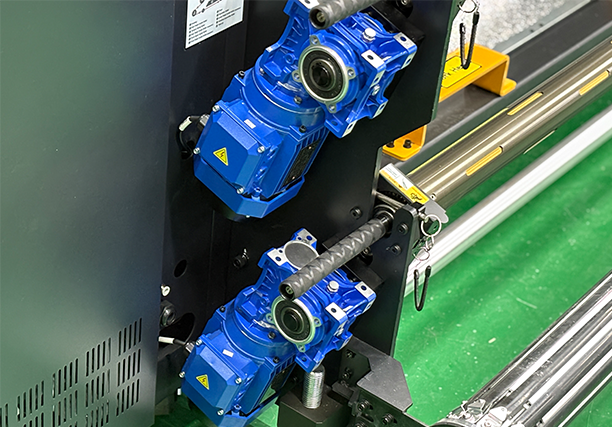

Industrial Motor

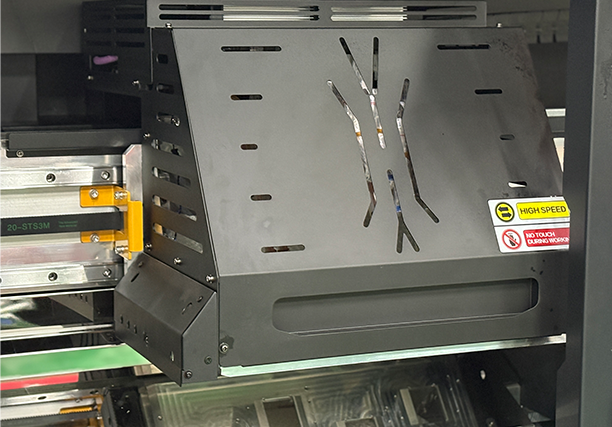

Anti Collision System

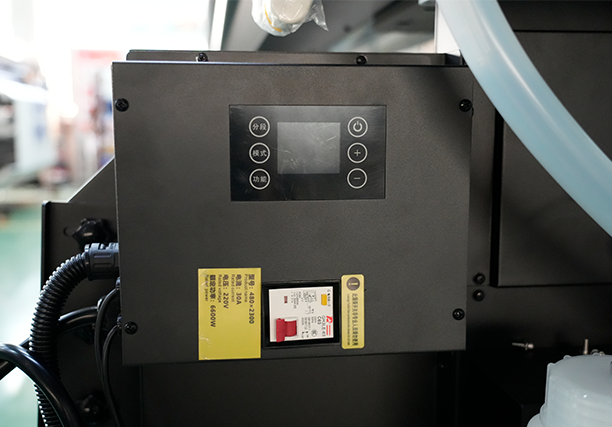

Intelligent Drying Control System
