FD5198E

  • Printhead Quantity: 8
  • Printhead:Epson I3200-A1
  • Print Width:1900mm
  • Print Colors: CMYK/CMYK+4 COLORS
  • Max.resolution(DPI):3200DPI
  • Max speed CMYK:1pass 370㎡/h
  • Ink Type:Sublimation Ink,Water based Pigment Ink
  • RIP Software:Printfactory、Maintop、Flexiprint、Onyx,Neostampa

Products Parameters

FD5198E
Printhead Epson I3200-A1 Nozzle Quantity 3200
Printhead Quantity 8 Print Width 1900mm
Print  Colors  CMYK/CMYK+4 COLORS Print Height 2-5mm
Max. resolution(DPI) 3200DPI Media Transfer Auto Tension Taking-Up Meida Device
Max speed  CMYK(1.9m printing width, 5% feather) 1pass   370㎡/h Drying Method Extra Dryer Device
Ink Supply Method Siphon Positive Pressure Ink Supply
Speed
*Tested on linear printing without feather function
1pass   370㎡/h Head Moisture
Method
Auto Head Cleaning and Moisturize
2pass    185㎡/h Print Media Transfer Paper
Bulk Tank Capacity 4L Material Transmit  Inflatable Roller Auto Feeding and Take-up System
Ink Type Sublimation Ink,
Water based Pigment Ink
Transmission
Interface
Gigabit LAN
Max. Media Taking up (40g paper) 1500 Max. Media Feeding(40g paper) 2000
Computer System Win7 64 Bit / Win10 64 Bit File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment Temp.:15℃-30℃,  Humidity: 35℃-65℃ RIP Software Printfactory、Maintop、Flexiprint、Onyx,Neostampa
Printer Size 3550*1335*1800mm GW(KGS) 1140
Package Size 3680*1285*2100mm Power Supply 210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max.3500W
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
Memory: 4G, CPU: Inte I5/I7, G-Ethernet
Standard Configuration Ink Level Alarm System

Description

  • Capping Station

    Special design four heads capping station for good quality output and high speed print.

  • Carriage

    Industrial carriage design which can adjust carriage height for different paper, also has anti-collision system to protect head safe.

  • Ink Tank

    Using 4L big ink tank which can reduce fill ink times.

  • Motor

    With industrial motors for taking and feeding material system to increase it’s lifetime.

  • Strip Roller

    Special tension rubber roller can reduce dark color job thin paper wrinkle effect.

  • Mirror

    Big mirror can checking head surface better.

  • Platform

    Advanced platform sucking design and aluminium body to improve print accuracy.

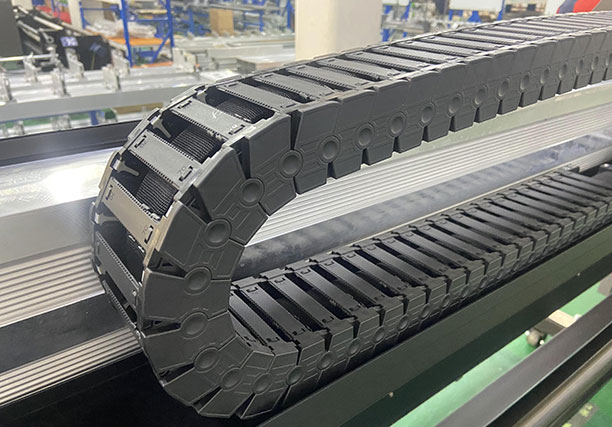

  • Ink Chain

    Big Igus ink chain to reduce ink tube abrasion and increase lifetime.

Capping Station

Carriage



Ink Tank

Motor

Strip Roller

Mirror

Platform

Ink Chain
