FD6198E

  • Printhead Quantity: 8
  • Printhead: Epson I3200-A1
  • Print Width: 1900mm
  • Print Colors: CMYK/CMYK+4 COLORS
  • Max.resolution(DPI): 3200DPI
  • Max speed CMYK: 1pass 370㎡/h
  • Ink Type: Sublimation Ink,Water Based Pigment Ink
  • RIP Software: Printfactory, Maintop, Flexiprint, Onyx, Neostampa

Products Parameters

FD6198E
Printhead Epson I3200-A1 Nozzle Quantity 3200
Printhead Quantity 8 Print Width 1900mm
Print  Colors  CMYK/CMYK+4 COLORS Print Height 2-5mm
Max. resolution(DPI) 3200DPI Media Transmit Auto Media Feeding and
Taking-up System, Roll to Roll
Max speed  CMYK(1.9m printing width, 5% feather) 1pass 370㎡/h Drying Method Extra Dryer Device
Ink Supply Method Siphon Positive Pressure Ink Supply
Speed
*Tested on linear printing without feather function
1pass 370㎡/h Head Moisture
Method
Auto Head Cleaning and Moisturizing
2pass 185㎡/h Print Media Transfer Paper

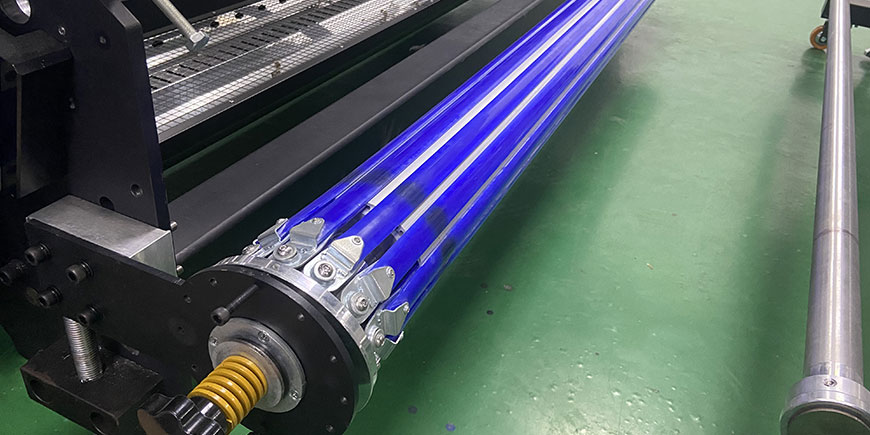

Bulk Tank Capacity 5L/15L  Material Transmit  Inflatable Roller Auto Feeding and Take-up System
Ink Type Sublimation Ink,
Water Based Pigment Ink
Transmission
Interface
Gigabit LAN
Max. Media Taking up (40g paper) 1500m Max. Media Feeding(40g paper) 2000m
Computer System Win7 64 Bit / Win10 64 Bit File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment

Temp.: 15℃-30℃

Humidity:  35℃-65℃

RIP Software Printfactory, Maintop, Flexiprint, Onyx, Neostampa
Printer Size 3725*1455*1810mm GW(KGS) 1300
Package Size 3900*1340*2040mm Power Supply 210-230V, 50/60HZ, 16A
Print Power: 1500W
Dryer Power: Max.9000W
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Intel i5/i7, Gigabit LAN
Standard Configuration Ink Level Alarm System

Description

  • Carriage

    Industrial carriage design which can adjust carriage height for different paper, also has anti-collision system to protect head safe.

  • Ink Tank

    Using 5L big ink tank which can reduce fill ink times.

  • Capping Station

    Special 8 heads sequence capping station design can eliminate banding effect.

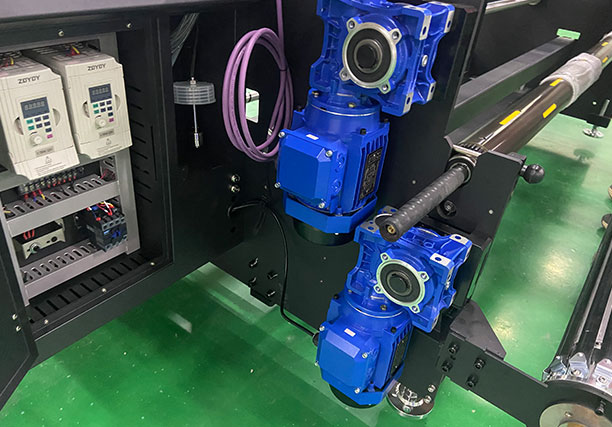

  • Motor

    With industrial motors for taking and feeding material system to increase it’s lifetime.

  • Guide Rail

    Double THK guide rail to ensure printing stability.

  • Pinch Rollers

    Smart pinch roller which you can control each one better.

  • Strip Roller

    Special tension rubber roller can reduce dark color job thin paper wrinkle effect.

Carriage

Ink Tank

Capping Station

Motor

Guide Rail

Pinch Rollers

Strip Roller

Ink Chain
