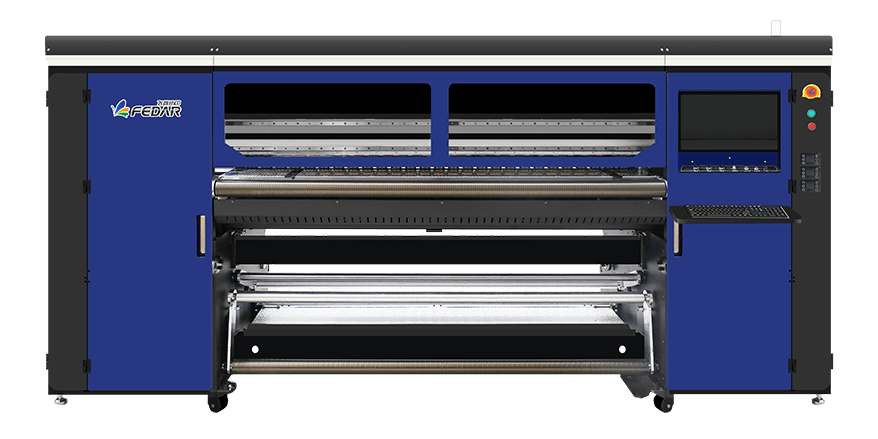

FD61915E

  • Printhead Quantity: 15
  • Printhead: Epson I3200-A1
  • Print Width: 1900mm
  • Print Colors: CMYK/CMYK+2 COLORS
  • Max.resolution(DPI): 3200DPI
  • Max speed CMYK: 1pass 610㎡/h
  • Ink Type: Sublimation Ink, Water based Pigment Ink
  • RIP Software: Printfactory, Maintop, Flexiprint, Onyx, Neostampa

Products Parameters

FD61915E
Printhead Epson I3200-A1 Nozzle Quantity 3200
Printhead Quantity 15 Print Width 1900mm
Print  Colors  CMYK/CMYK+2 COLORS Print Height 2-5mm
Max. resolution(DPI) 3200DPI Media Transmit Auto Media Feeding and
Taking-up System, Roll to Roll
Max speed  CMYK(1.9m printing width, 5% feather) 1pass 610㎡/h Drying Method Extra Dryer Device
Ink Supply Method Siphon Positive Pressure Ink Supply
Head Moisture Auto Head Cleaning and Moisturizing
Speed 1pass 610㎡/h Method
*Tested on linear printing without feather Function 2pass 300㎡/h Print Media Transfer Paper
Bulk Tank Capacity 5L/15L Material Transmit  Inflatable Roller Auto Feeding and Take-up System
Ink Type Sublimation Ink, Transmission Gigabit LAN
Water Based Pigment Ink Interface
Max. Media Taking up (40g paper) 1500m Max. Media Feeding(40g paper) 2000m
Computer System Win7 64 Bit / Win10 64 Bit File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment

Temp.: 15℃-30℃

Humidity: 35℃-65℃

RIP Software Printfactory, Maintop, Flexiprint, Onyx, Neostampa
Printer Size 3725*1455*1810mm GW(KGS) 1640
Package Size 3940*1160*2160mm Power Supply 210-230V, 50/60HZ, 16A
Print Power: 1500W
Dryer Power: Max.9000W
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Intel i5/i7, Gigabit LAN
Standard Configuration Ink Level Alarm System

Description

  • Carriage

    The height of can be adjusted arbitrarily, and it can flexibly respond to different thicknesses of printing materials.  The anti-scratch-paper function on both sides of the small frame can reduce the damage of the nozzle caused by the paper tilting.

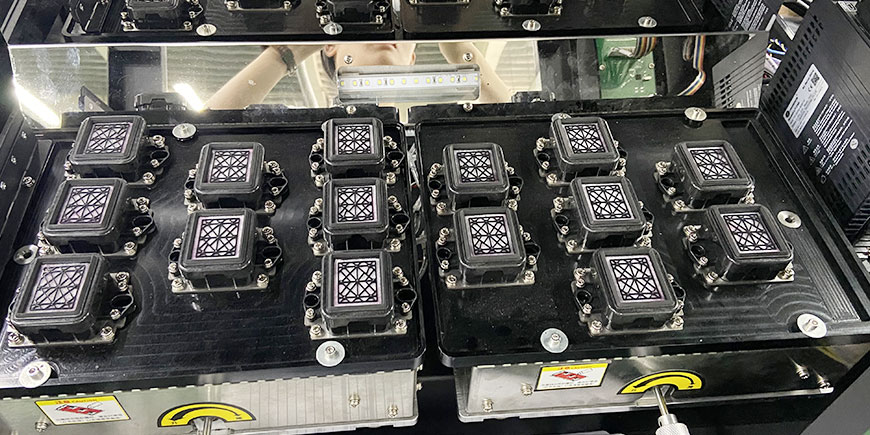

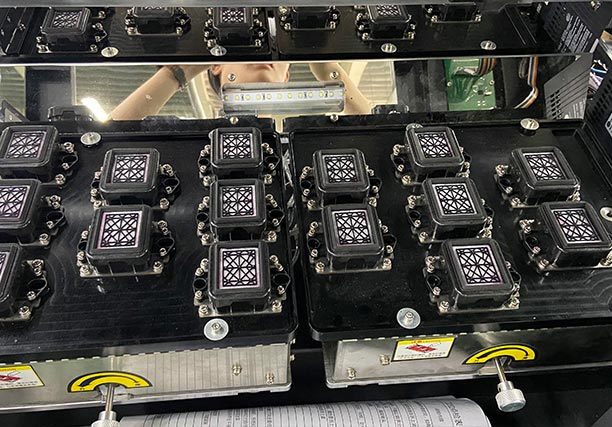

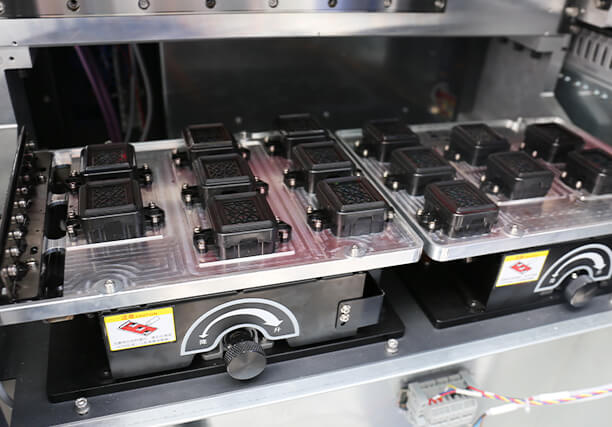

  • Capping Station

    Finished integrated capping station equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient. The working principle of the automatic ink cleaning function: the digital printing machine draws the ink through the nozzle of the ink pump in the ink stack to achieve the purpose of cleaning and moisturizing, preventing the nozzle from clogging.

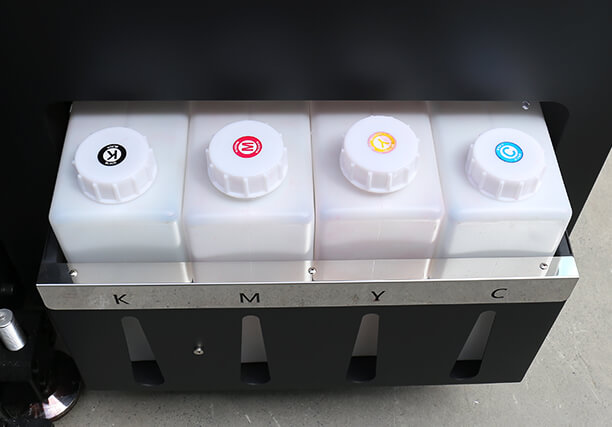

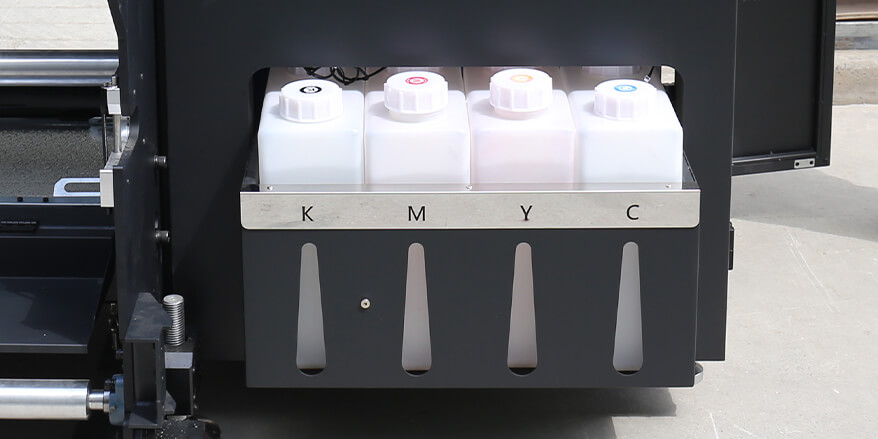

  • Ink Tank

    5 Liters bulk tanks with ink Starving Alarm system to make sure good print job. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.

  • Guide Rail

    Design of double silent guide rails, which is made of alloy steel makes the carriage run more accurately and move more smoothly.

  • Pinch Rollers

    Special designed pinch roller made of Du-pond rubber, each roller can be lifted independently to eliminate the wrinkle caused by media moving.

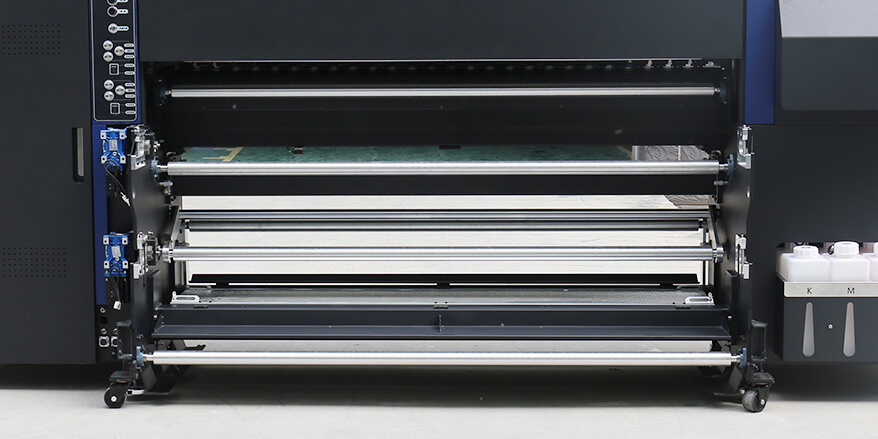

  • Feeding & Take-up System

    This auto feeding and taking-up device with tension sensor bar makes the force even and makes the paper smoother. It's simple and convenient to take up printed media.

  • Pulley

    10 cm thick one-time forming aluminum alloy beam with high precision servo motors on X&Y direction.

  • Platform

    The assembly precision of the machine printing platform is controlled within plus or minus 7.5 decile meters, which lays the foundation for high-precision and high-quality production. The overall honeycomb aluminum alloy platform is hard-oxidized on the surface and will not deform for a long time.

Carriage

Capping Station

Ink Tank

Guide Rail

Pinch Rollers

Feeding & Take-up System

Pulley

Platform
