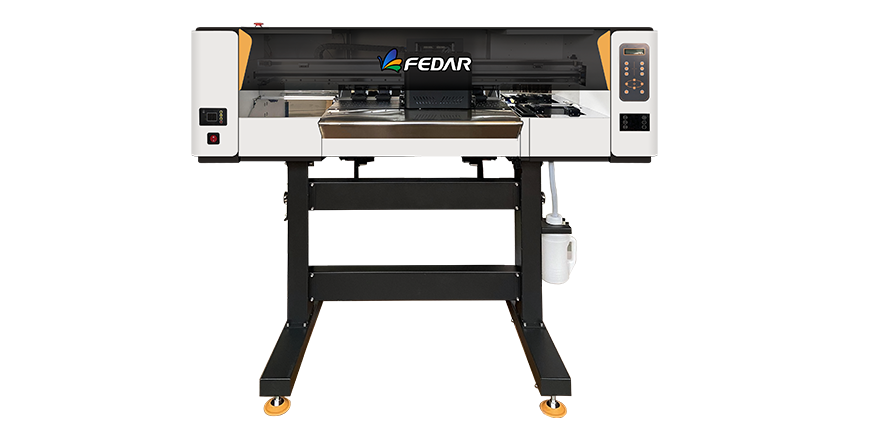

FEDAR FD60 DTF Printer
Printhead	Epson I3200-A1		Nozzle Quantity	3200
Printhead Quantity	2		Print Width	600mm
Print Colors	CMYK+W		Print Height	2-5mm
Max. resolution（DPI）	3200DPI		Media	Pyrograph Film

Max speed CMYK(1.9m printing width, 5% feather)	6pass	8㎡/h	Drying Method	Extra Dryer Device
Speed *Tested on linear printing without feather Function	6pass	8㎡/h	Ink Supply Method	Siphon Positive Pressure Ink Supply
	8pass	6㎡/h	Head Moisture	Auto Head Cleaning and Moisturizing
			Method
			Ink Cycle	Auto White Ink Cycle
Bulk Tank Capacity	220ML		Material Transmit	Single Motor System
Ink Type	Pigment Ink		Transmission	Gigabit LAN
			Interface
Max. Media Taking up (40g paper)	100m		Max. Media Feeding(40g paper)	100m
Computer System	Win7/Win10		File Forms	TIFF, JPG, EPS, PDF, etc.
Operate Environment	Temp.: 15℃-30℃, Humidity: 35℃-65℃		RIP Software	Maintop, Flexiprint

Printer Size	17206501400mm		GW(KGS)	210
Package Size	17601000750mm		Power Supply	210V, 50/60HZ, 10A
				Print Power: 1000W
				Dryer Power: Max.3500W
Computer Configuration	Hard Disk: HARD DISK: 500G or more，GPU: ATI Discrete GPU Memory: 8G or more, CPU: Intel i5 Processor

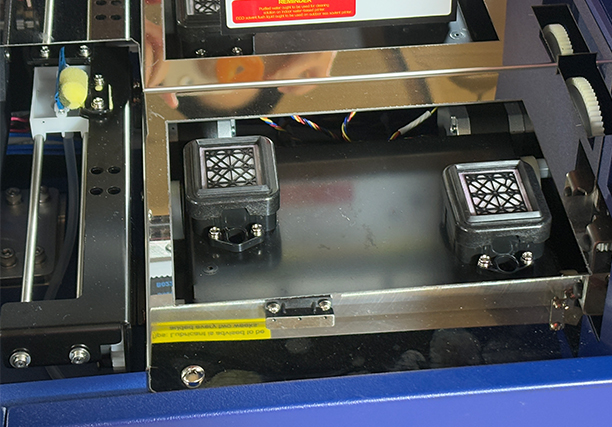

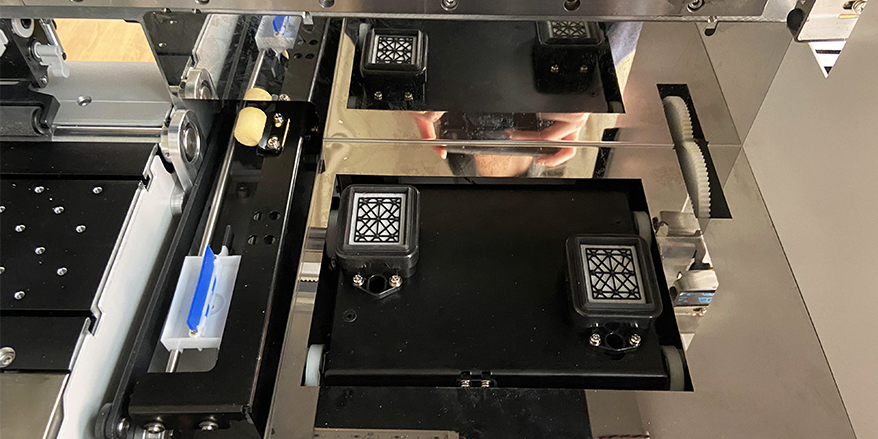

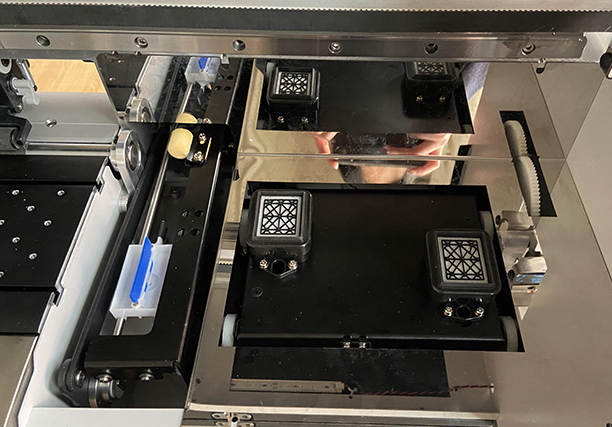

Capping Station

This FEDAR Model:FD60 DTF printer is equipped with patented designed maintenance capping station. It's lifted up and down via column driven by motor in the middle, which greatly maintain the balance of capping comparing the traditional gear drive.

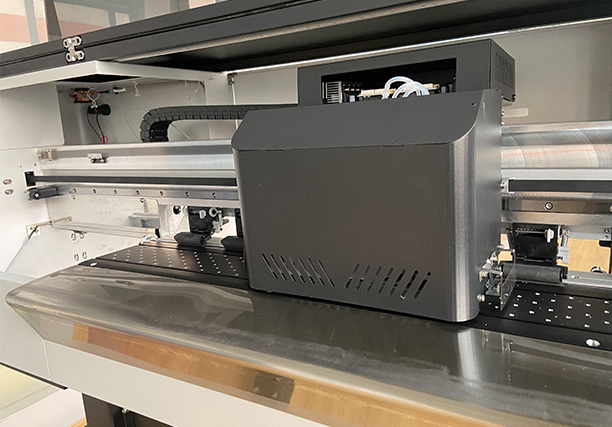

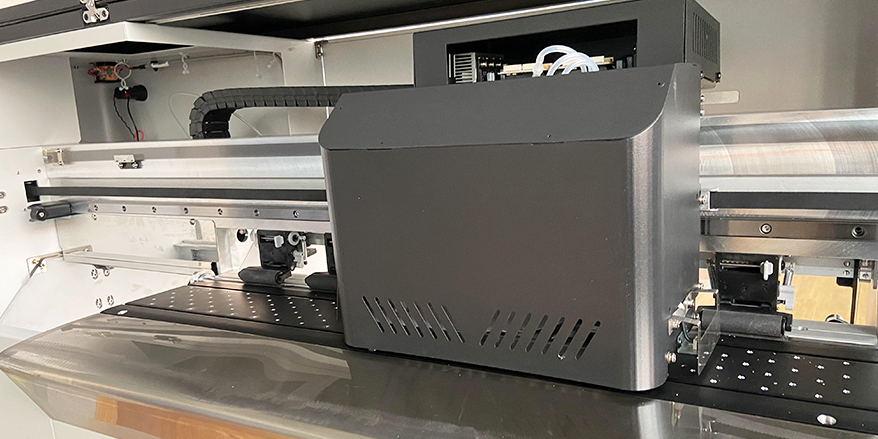

Carriage

The FD60 DTF printer has anti-collision carriage.

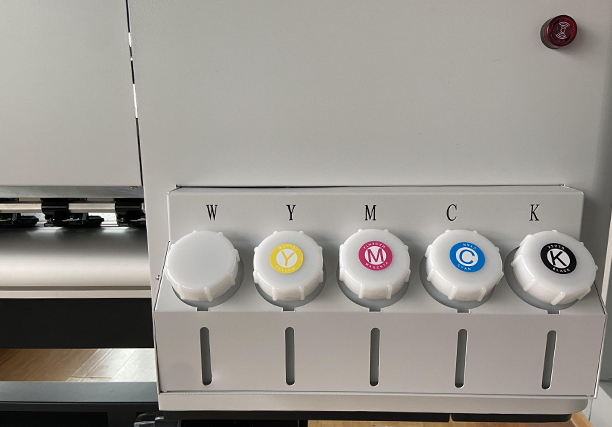

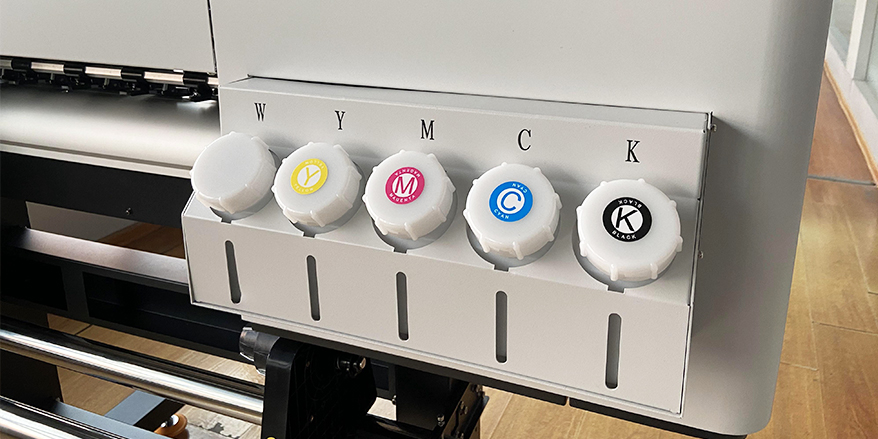

Ink Tank

The top grade digital DTF printer equips 1.5 L big ink tank circulatory system and stirs white ink intermittently, the user can adjust it on printing software.

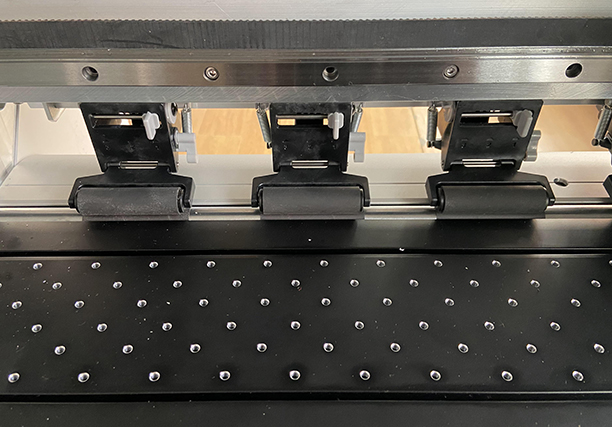

Pinch Rollers

Multi - line pinch rollers make paper feeding more accurate during this FD60 DTF digital printer working process.

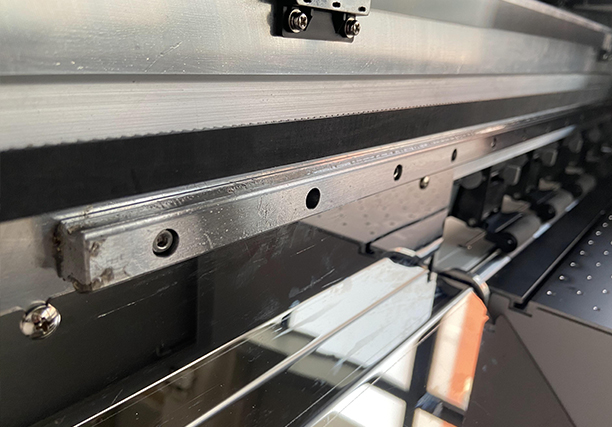

Guide Rail

The FD60 DTF printer uses imported silent linear guide rail.
Motor

The FEDAR DTF 60CM digital printer uses leadshine business integrated servo motors are used on both X&Y direction.
