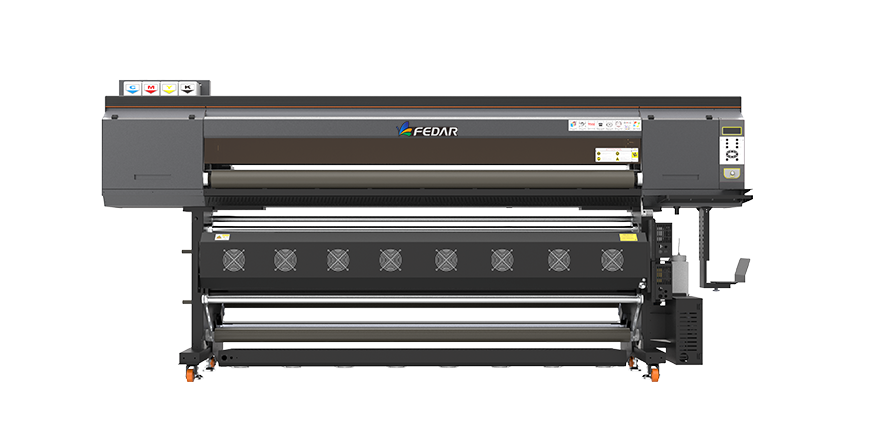

| FEDAR FD5228E Sublimation Printer | ||||
| Printhead | Epson I3200-A1 | Nozzle Quantity | 3200 | |
| Printhead Quantity | 8 | Print Width | 2200mm | |
| Print Colors | CMYK | Print Height | 2-5mm | |
| Max. resolution（DPI） | 3200DPI | Media Transmit | Auto Tension Taking-Up Meida Device | |
| Max speed CMYK(1.9m printing width, 5% feather) | 2pass | 190㎡/h | Drying Method | Extra Dryer Device |
| Speed *Tested on linear printing without feather function |
1pass | 385㎡/h | Ink Supply Method | Bulk Tank Sub-tank Ink Supply |
| 2pass | 190㎡/h | Head Moisture Method |
Auto Head Cleaning and Moisturizing | |
| Print Media | Transfer Paper | |||
| Bulk Tank Capacity | 5L/15L | Material Transmit | Inflatable Roller Auto Feeding and Take-up System | |
| Ink Type | Sublimation Ink, Water Based Pigment Ink |
Transmission Interface |
Gigabit LAN | |
| Max. Media Taking up (40g paper) | 1500m | Max. Media Feeding(40g paper) | 2000m | |
| Computer System | Win7 64 Bit / Win10 64 Bit | File Forms | TIFF, JPG, EPS, PDF, etc. | |
| Operate Environment |
Temp.: 15℃-30℃ Humidity: 35℃-65℃ |
RIP Software | Maintop, FlexiPRINT, ONYX, Neostampa and etc. Maintop7.0(Standard Equipped) | |
| Printer Size | 3540*1100*1740mm | GW(KGS) | 1600 | |
| Package Size | 3660*850*1100mm | Power Supply | 210-230V, 50/60HZ, 16A Print Power: 1200W Dryer Power: Max.3600W |
|
| Computer Configuration | Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU, Memory: 4G, CPU: Intel i5/i7, G-Ethernet |
|||
| Standard Configuration | Ink Level Alarm System | |||
Fedar FD5228E Digital Sublimation Printer adopts Japanese double THK mute guide rail, moving steadily, longer working life and reducing there sistance and noise of carriage moving during the high speed printing.
Unique air suction mode with stronger adsorption, which is more even for paper moving, and ensures the printing quality.
This Fedar Sublimation Printer adopts imported fluororubber pinch roller, preventing statics which may result inink misting during printing. Specially designed pinch roller, which can be lifted up independently to eliminate wrinkle during printing.
Inflatable roller system, with air inflation swing-arm tension control system.
It is easy and convenient to adjust the printhead height according to different media. And anti collision system installed on both sides of carriage, which automatic detect any force on carriage way to protect the printhead inside.
Intelligent dryer unit, high stability and durability, and easy to operate.

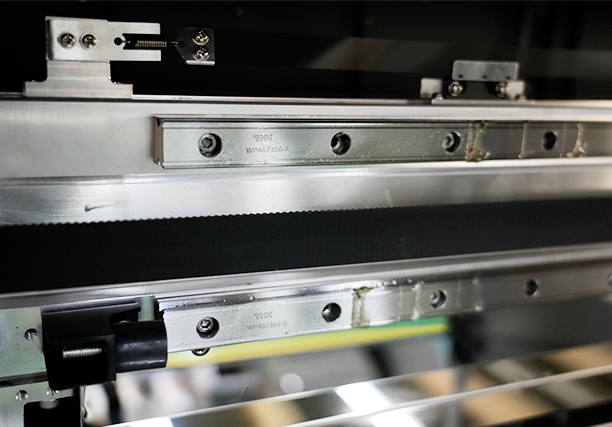

Imported THK Mute Guide Rail

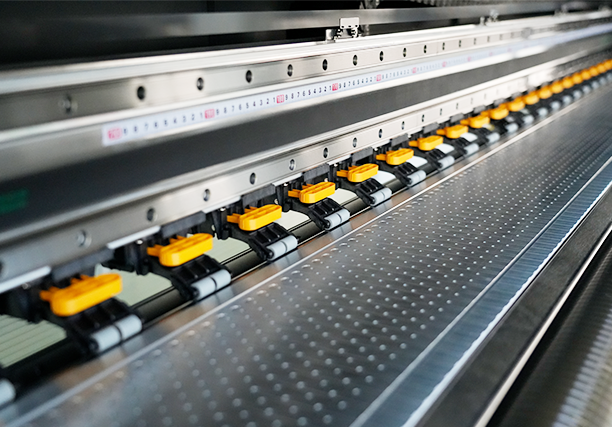

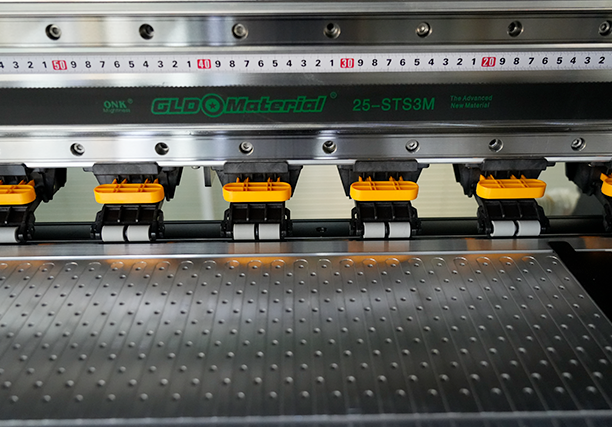

Special-Designed Air Suction Platform

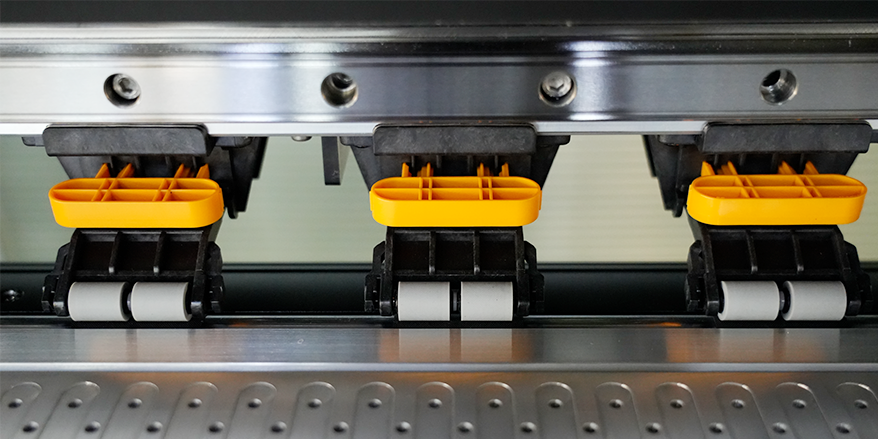

Imported Fluororubber Pinch Rollers

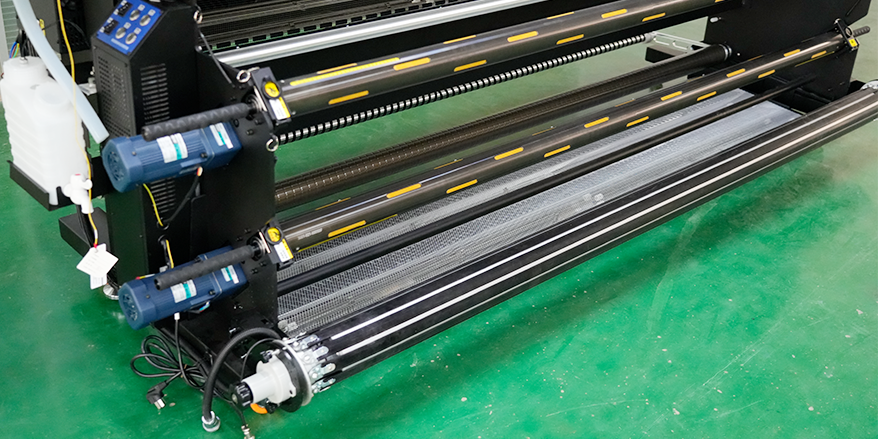

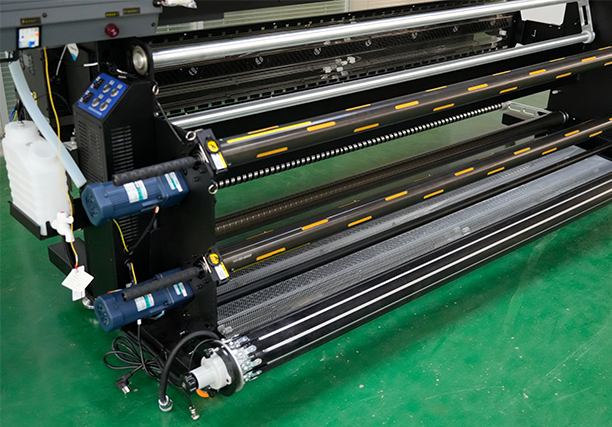

Inflatable Roller System

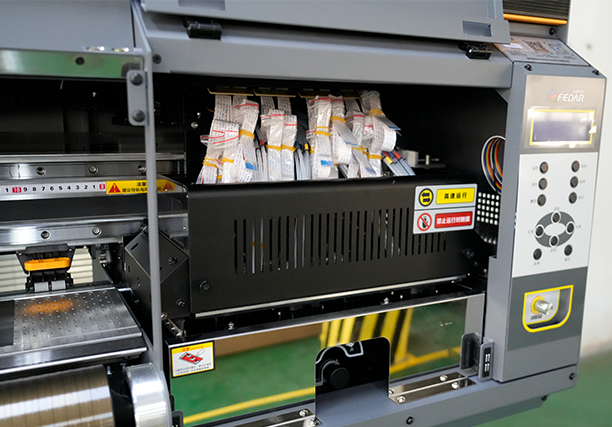

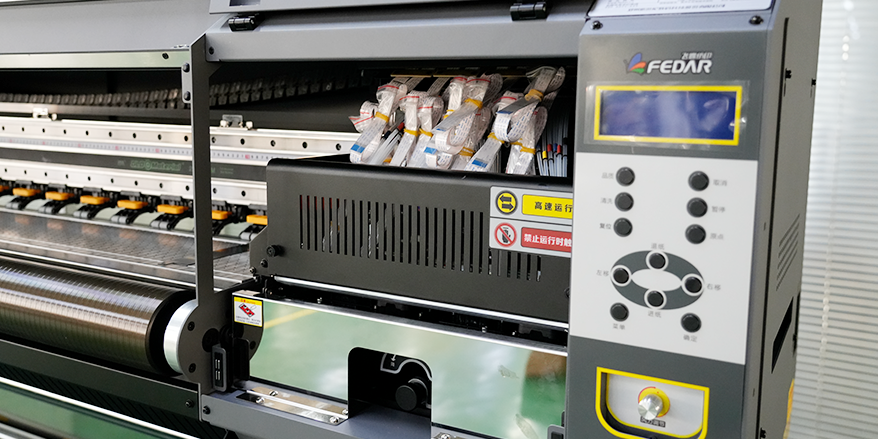

Anti Collision System
Intelligent Drying Control System
