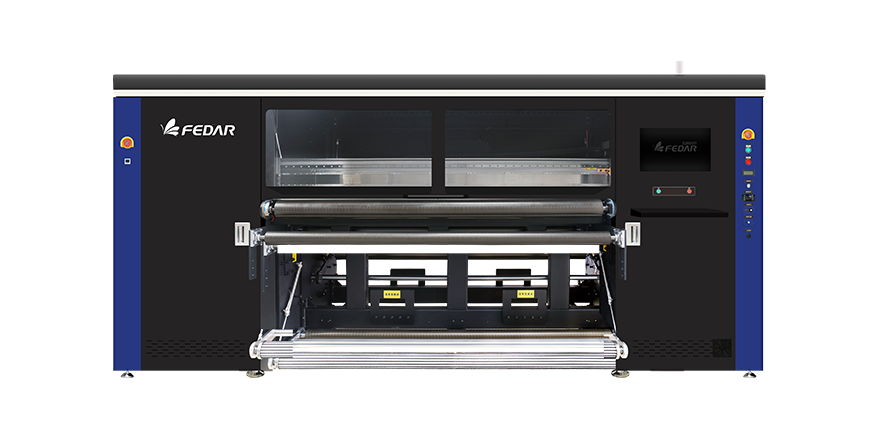

16 Heads FEDAR FD61936E

Model: FEDAR FD61936E Sublimation Printer
Printhead Quantity: 36
Printhead: Epson I3200-A1
Print Width: 1900mm
Print Colors: CMYK
Max.resolution（DPI）: 3200DPI
Max speed CMYK: 1pass 1240㎡/h
Ink Type: Sublimation Ink
RIP Software: Maintop, FlexiPRINT, ONYX, Neostampa and etc. Maintop7.0(Standard Equipped)

Get The Best Price DownLoad Pdf

FEDAR FD61936E Sublimation Digital Textile Printer
Printhead	Epson I3200-A1		Nozzle Quantity	3200
Printhead Quantity	36		Print Width	1900mm
Print Colors	CMYK		Print Height	2-5mm
Max. resolution（DPI）	3200DPI		Media Transmit	Auto Media Feeding and
				Taking-up System, Roll to Roll
Max speed CMYK(1.9m printing width, 5% feather)	1pass	1240㎡/h	Drying Method	Extra Dryer Device
			Ink Supply Method	15L Large Continuous Ink Supply System
			Head Moisture	Auto Head Cleaning and Moisturizing
Speed	1pass	1240㎡/h	Method
*Tested on linear printing without feather Function	2pass	640㎡/h	Print Media	Transfer Paper

Bulk Tank Capacity	25L		Material Transmit	Ten Thousand Meters Unwinding
Ink Type	Sublimation Ink		Transmission	Gigabit Ethernet Port
			Interface
Max. Media Taking up (40g paper)	10000m		Max. Media Feeding(40g paper)	10000m
Computer System	Win7 64 Bit / Win10 64 Bit		File Forms	TIFF, JPG, PDF, etc.
Operate Environment	Temp.: 15℃-30℃ Humidity: 35℃-65℃		RIP Software	Maintop, FlexiPRINT, ONYX, Neostampa and etc. Maintop7.0 (Standard Equipped)

Printer Size	403029602250mm		GW(KGS)	1600
Package Size	417014702190mm		Power Supply	210-230V, 50/60HZ, 16A
				Print Power: 26KW
				Dryer Power: Max.19.2KW
Computer Configuration	Hard Disk: 500G or more (SSD is recommended), RAM: 16G, GPU: ATl Mobility Memory 4G
	CPU: Intel i7
Standard Configuration	Intelligent Drying System Liquid Level Alarm System Waste Ink Alarm System

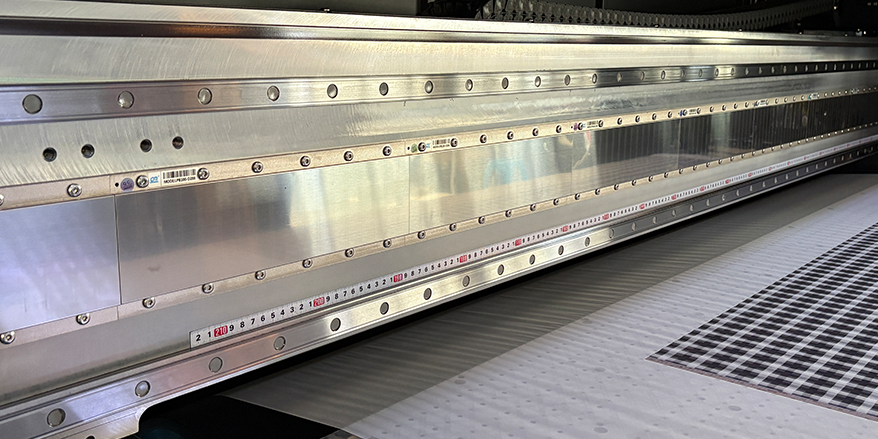

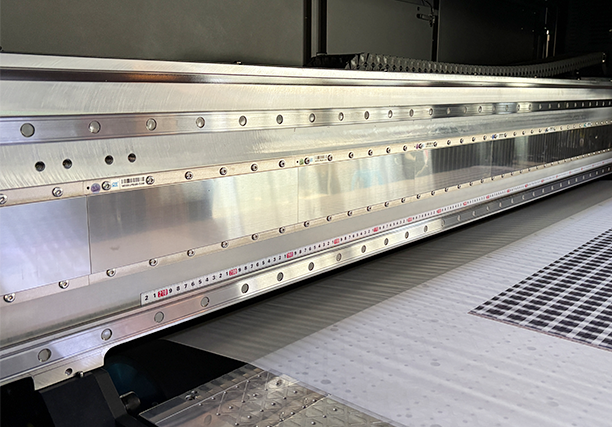

Imported THK Mute Guide Rail

Japanese THK mute guide rail, moving steadily, longer working life, and reducing the resistance and noise of carriage moving during the high speed printing.

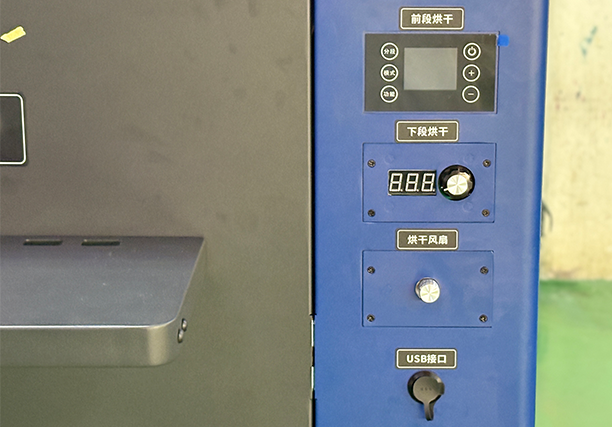

Intelligent Drying Control System

The intelligent drying system rapidly reaches the target temperature before transitioning to a constant heat mode, which reduces preheating time and saves energy.

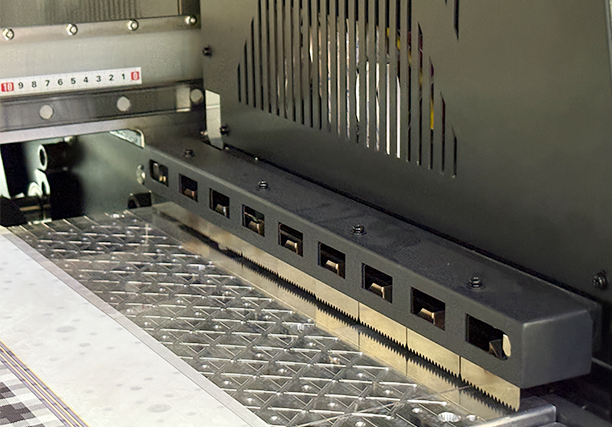

Laser Anti-Collision System

The carriage is equipped with a laser anti-collision system that provides
responsive detection and simple maintenance, ensuring operational safety.

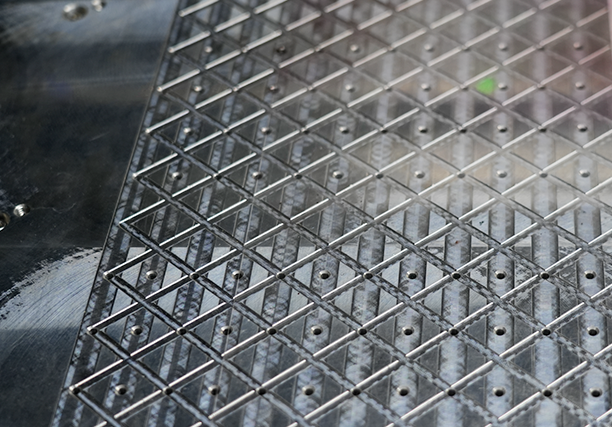

Air-Suction

The unique air-suction system provides enhanced adsorption force, ensuring smooth and wrinkle-free printing on thin paper.

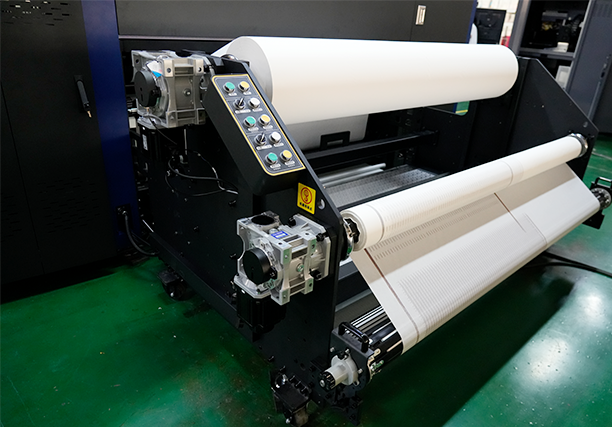

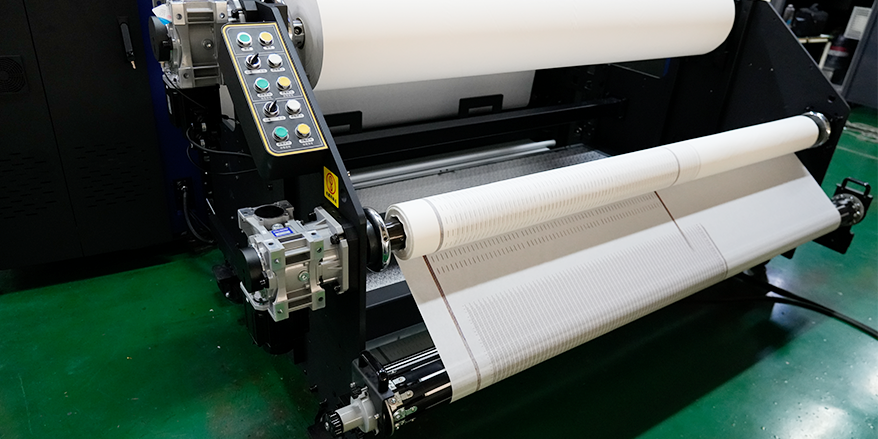

Industrial Motor

The feeding & take-up system is equipped with industrial motor, which adopts precise servo control to make paper moving more accurate.

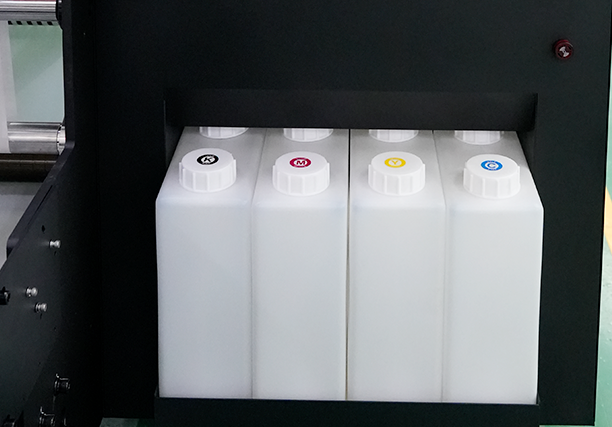

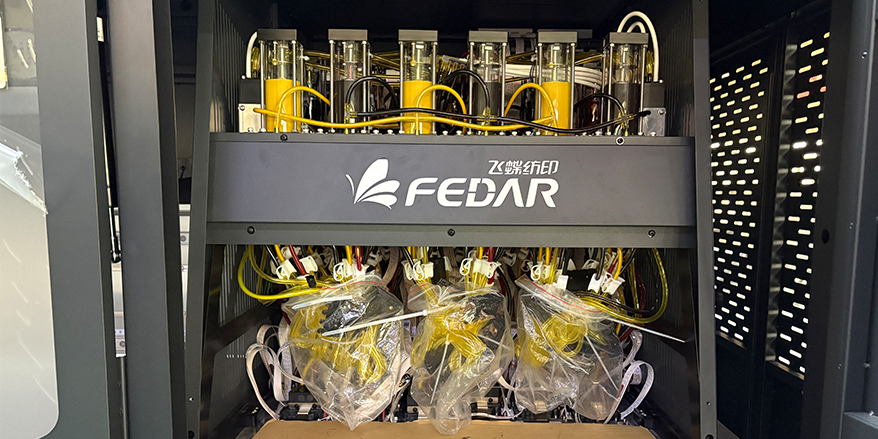

25L Large Continuous Ink Supply System

This high-capacity, independently arranged continuous ink supply system features ink containers witha capacity of up to 25L each, significantly reducing the frequency of customer refills.
