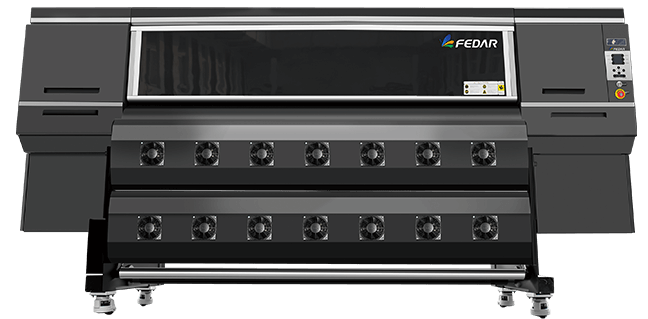

FD5194E

  • Printhead Quantity: 4
  • Printhead: Epson I3200-A1
  • Print Width: 1900mm
  • Print Colors: CMYK/CMYK+4 COLORS
  • Max.resolution(DPI): 3200DPI
  • Max speed CMYK: 2pass 180㎡/h
  • Ink Type: Sublimation Ink,Water Based Pigment Ink
  • RIP Software: Printfactory, Maintop, Flexiprint, Onyx, Neostampa

Products Parameters

FD5194E
Printhead Epson I3200-A1 Nozzle Quantity 3200
Printhead Quantity 4 Print Width 1900mm
Print  Colors  CMYK/CMYK+4 COLORS Print Height 2-5mm
Max. resolution(DPI) 3200DPI Media Transmit Auto Tension Taking-Up Meida Device
Max speed  CMYK(1.9m printing width, 5% feather) 2pass 180㎡/h Drying Method Extra Dryer Device
Speed
*Tested on linear printing without feather function
2pass 180㎡/h Ink Supply Method Siphon Positive Pressure Ink Supply
3pass 110㎡/h Head Moisture
Method
Auto Head Cleaning and Moisturizing
4pass 85㎡/h Print Media Transfer Paper
Bulk Tank Capacity 4L Material Transmit  Inflatable Roller Auto Feeding and Take-up System
Ink Type Sublimation Ink,
Water based Pigment Ink
Transmission
Interface
Gigabit LAN
Max. Media Taking up (40g paper) 1000m Max. Media Feeding(40g paper) 1000m
Computer System Win7 64 Bit / Win10 64 Bit File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment Temp.:15℃-30℃,  Humidity: 35℃-65℃ RIP Software Printfactory, Maintop, Flexiprint, Onyx, Neostampa
Printer Size 3180*110*1700mm GW(KGS) 360
Package Size 3370*860*1110mm Power Supply 210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max.3500W
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk: WG500G GPU: ATI Discrete GPU,
Memory: 4G, CPU: Intel I5/I7, G-Ethernet
Standard Configuration Ink Level Alarm System

Description

  • Capping Station

    New design four heads capping station for good quality output and high speed print.

  • Ink Tank

    Using 4L big ink tank which can reduce fill ink times.

  • Carriage

    Intelligent carriage with anti-collision system for protect head safe.

  • Dryer System

    Double big power extra dryers ensure drying printed paper efficiently.

  • Guide Rail

    Adopt no noise and long lifetime THK guide rail.

  • Platform

    Advanced platform sucking design and aluminium body to improve print accuracy.

  • Pinch Rollers

    Smart pinch roller which you can control each one single.

  • Feeding & Take-up System

    Auto air shaft taking up system for 1000m transfer paper.
