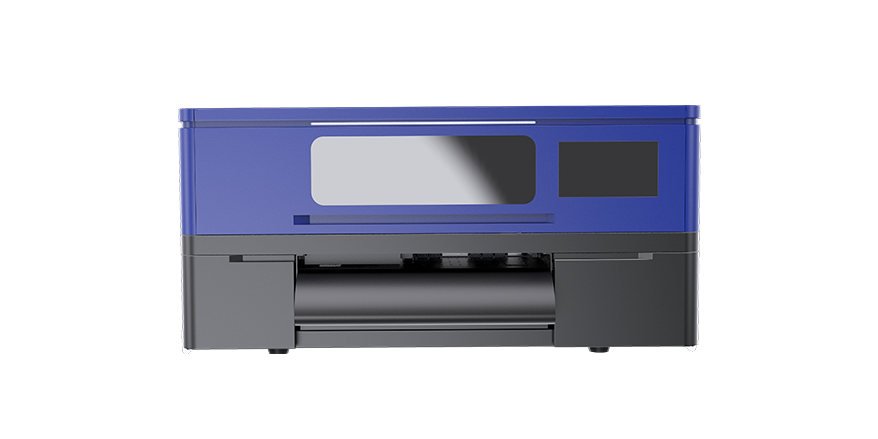

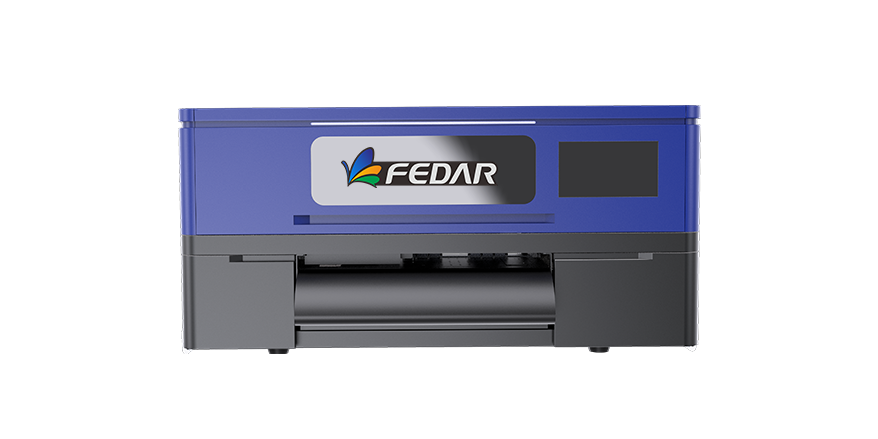

| FEDAR FD30Pro DTF Printer | ||||
| Printhead | Epson I1600-A1 | Nozzle Quantity | 1600 | |
| Printhead Quantity | 2 | Print Width | 330mm | |
| Print Colors | CMYK+W | Print Height | 2-5mm | |
| Max. resolution（DPI） | 1600DPI | Media | PET Film | |
| Max speed CMYK(1.9m printing width, 5% feather) | 8pass | 3.3㎡/h | ||
| Speed *Tested on linear printing without feather Function | 8pass | 3.3㎡/h | ||
| Head Moisture | Auto Head Cleaning and Moisturizing | |||
| Method | ||||
| Ink Cycle | White Ink Peristaltic Pump | |||
| Bulk Tank Capacity | 150ML | Material Transmit | Single Motor System | |
| Ink Type | Pigment Ink | Transmission | Giga-bit Ethernet Port | |
| Interface | ||||
| Max. Media Taking up (40g paper) | 100m | Max. Media Feeding(40g paper) | 100m | |
| Computer System | Win7 or above | File Forms | JPG, TIF, BMP, PDF, etc. | |
| Operate Environment |
Temp.: 15℃-30℃, Humidity: 35℃-65℃ |
RIP Software | Fiery, Maintop, Flexiprint, Riin, etc. | |
| Printer Size | 845*625*410mm | GW(KGS) | 51 | |
| Package Size | Power Supply | 110/220V, 50/60HZ, 16A | ||
| Print Power: 10A | ||||
| Computer Configuration | Hard Disk: 500G or more, GPU: ATI Mobility Radeon, RAM: 8G DDR4 or above, CPU: Intel Core i7 3.0HZ above | |||
Advanced moisturizing device maintains optimal ink absorption and flow.
Open-design structure enables easy printhead observation and cleaning.
5-color ink system produces vibrant, high-saturation colors.
Silent linear guide rail ensures smooth carriage movement with quiet operation and extended lifespan.

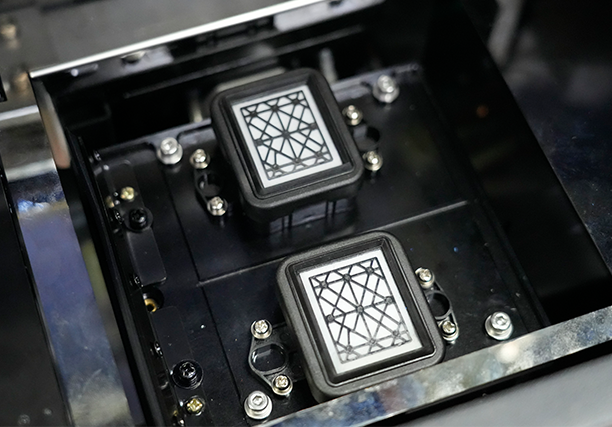

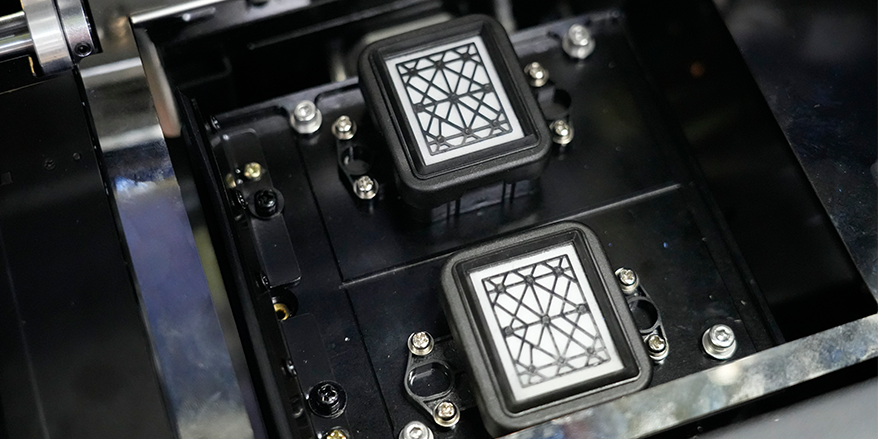

Capping Station

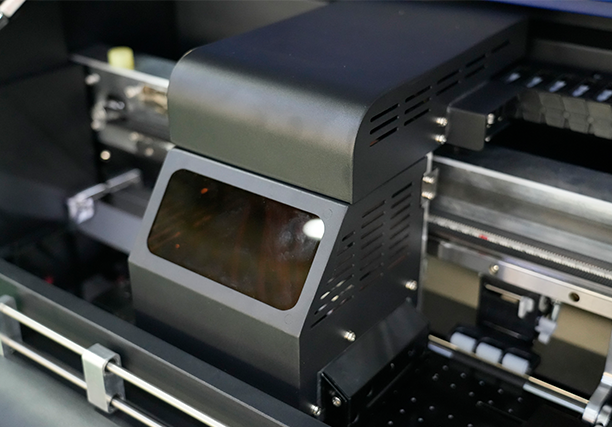

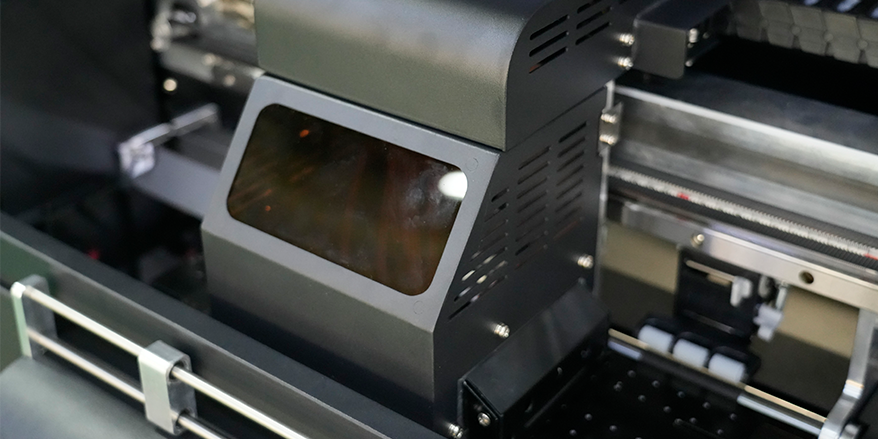

Carriage

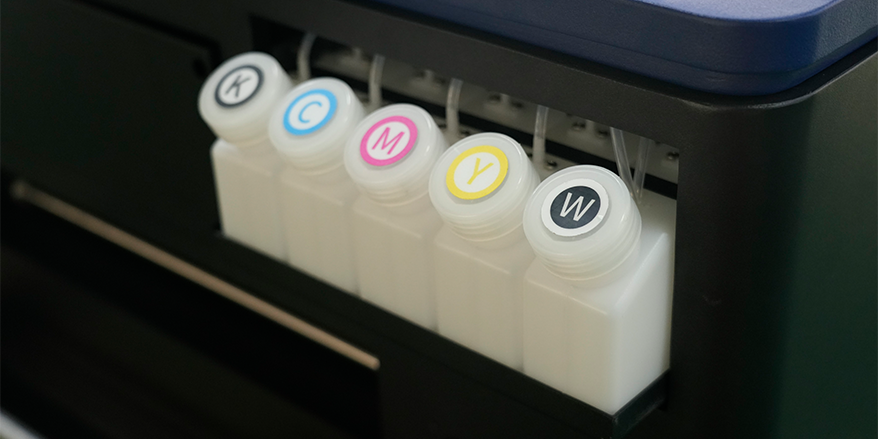

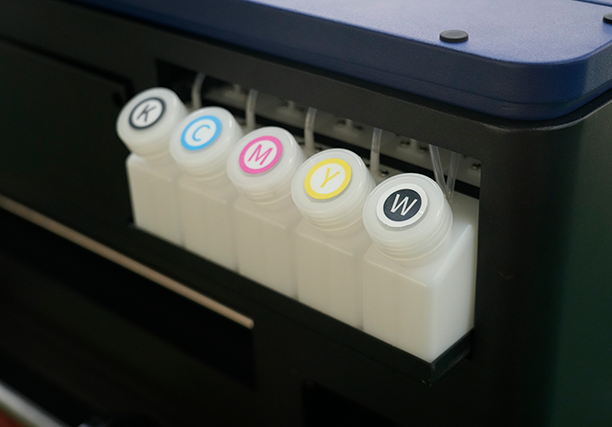

Ink Tank

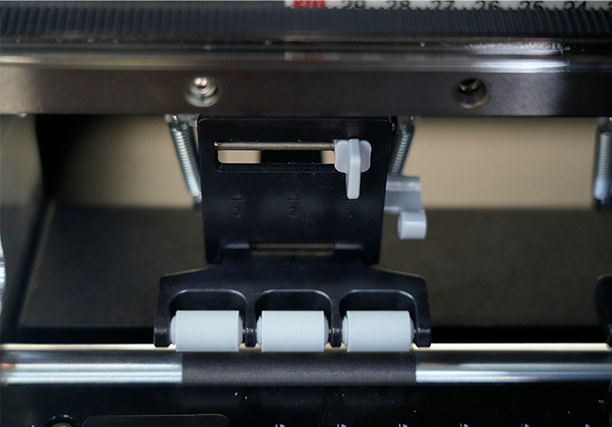

Guide Rail
