Products Video

8 Heads FEDAR FD5268E

  • Model: FEDAR FD5268E Sublimation Printer
  • Printhead Quantity: 8
  • Printhead: Epson I3200-A1
  • Print Width: 1900mm
  • Print Colors: CMYK
  • Max.resolution(DPI): 3200DPI
  • Max speed CMYK: 2pass 310㎡/h
  • Ink Type: Sublimation Ink,Water based Pigment Ink
  • RIP Software:Printfactory, Maintop, Flexiprint, Onyx, Neostampa

Products Parameters

FEDAR FD5268E Sublimation Printer
Printhead Epson I3200-A1 Nozzle Quantity 3200
Printhead Quantity 8 Print Width 2600mm
Print  Colors  CMYK Print Height 2-5mm
Max. resolution(DPI) 3200DPI Media Transmit Auto Tension Taking-Up Meida Device
Max speed  CMYK(1.9m printing width, 5% feather) 2pass 390㎡/h Drying Method Extra Dryer Device
Speed
*Tested on linear printing without feather function
2pass 390㎡/h Ink Supply Method Siphon Positive Pressure Ink Supply
4pass 164㎡/h Head Moisture
Method
Auto Head Cleaning and Moisturizing
6pass 100㎡/h Print Media Transfer Paper
Bulk Tank Capacity 5L/15L  Material Transmit  Inflatable Roller Auto Feeding and Take-up System
Ink Type Sublimation Ink,
Water Based Pigment Ink
Transmission
Interface
Gigabit LAN
Max. Media Taking up (40g paper) 1500m Max. Media Feeding(40g paper) 2000m
Computer System Win7 64 Bit / Win10 64 Bit File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment

Temp.: 15℃-30℃

Humidity: 35℃-65℃

RIP Software Printfactory, Maintop, Flexiprint, Onyx, Neostampa
Printer Size 4318*1335*1820mm GW(KGS) 1400
Package Size 4390*1110*1890mm Power Supply 210-230V, 50/60HZ, 16A
Print Power: 1200W
Dryer Power: Max.3600W
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
Memory: 4G, CPU: Intel i5/i7, G-Ethernet
Standard Configuration Ink Level Alarm System

Description

  • Capping Station

    Fedar FD5268E Digital Sublimation Printer adopts a finished integrated capping station equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more convenient.

  • Carriage

    The height of the carriage of this Fedar Sublimation Printer can be adjusted arbitrarily, and it can flexibly respond to different thicknesses of printing materials. The anti-scratch-paper function on both sides of the small frame can reduce the damage to the nozzle caused by the paper tilting.

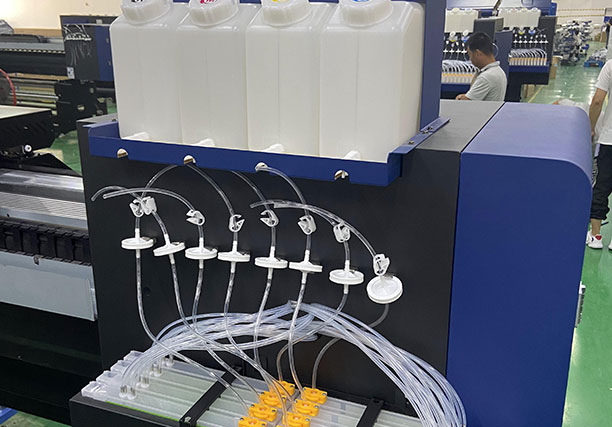

  • Ink Tank

    This Fedar Sublimation Printer adopts 5 liters bulk tanks with an ink starving alarm system to make sure longer print job. The powerful continuous supply ink supply system provides support for the improvement of production efficiency, avoiding the frequent shortage of ink in production and the heavy work caused by back and forth inspection.

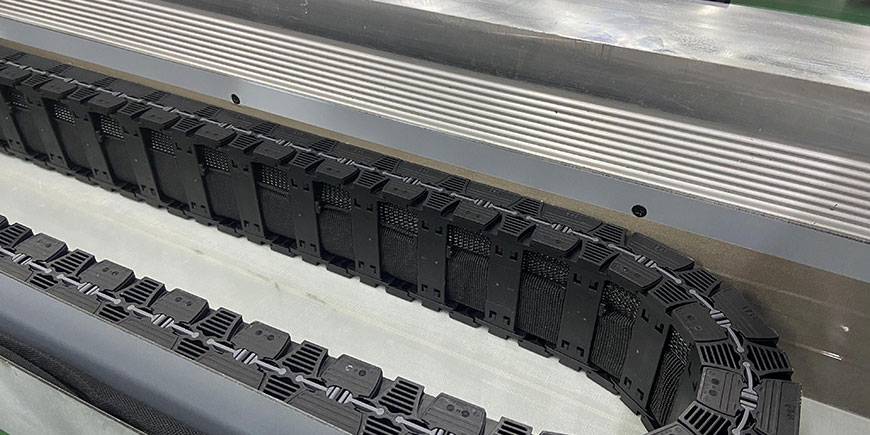

  • Ink Chain

    Use Igus chain, better to protect data cable and fiber optic cables, and ensure work more stable.

  • Motor

    This Fedar Digital Textile Printer uses a LeadShine industry servo motor. High-speed drive, linear decoding, a small error, high precision, stable operation, long life.

  • Pulley

    10 cm thick one-time forming aluminum alloy beam with high precision servo motors on X&Y direction.

  • Pinch Rollers

    This Fedar Sublimation Printer has a specially designed pinch roller made of dupond rubber, each roller can be lifted independently to eliminate the wrinkle caused by media moving.

  • Guide Rail

    Fedar FD5268E Sublimation Printer has a design of double silent THK guide rails, which makes the carriage run more accurately and move more smoothly.

Capping Station

Carriage

Ink Tank

Ink Chain

Motor

Pulley

Pinch Rollers

Guide Rail
