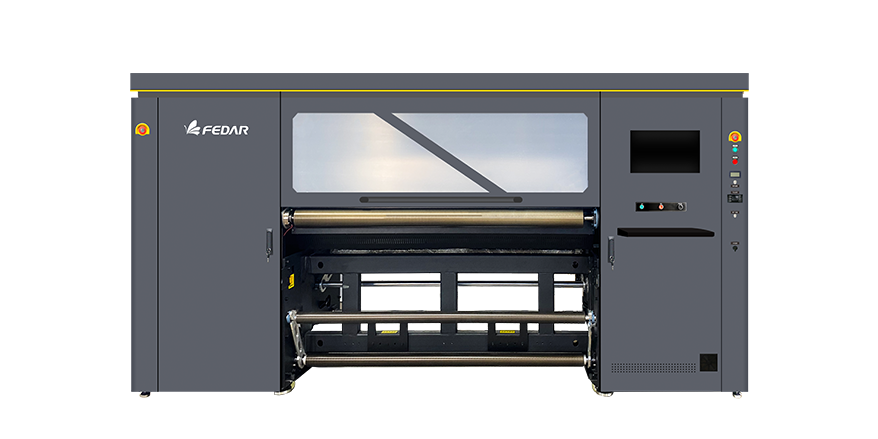

| FEDAR FD51930E Digital Textile Printer | ||||
| Printhead | Epson I3200-A1 | Nozzle Quantity | 3200 | |
| Printhead Quantity | 30 | Print Width | 1900mm | |
| Print Colors | CMYK | Print Height | 2-5mm | |
| Max. resolution（DPI） | 3200DPI | Media Transmit | Auto Media Feeding and | |
| Taking-up System, Roll to Roll | ||||
| Max speed CMYK(1.9m printing width, 5% feather) | 1pass 1050㎡/h | Drying Method | Extra Dryer Device | |
| Ink Supply Method | Bulk Tank Sub-tank Ink Supply | |||
| Head Moisture | Auto Head Cleaning and Moisturizing | |||
| Method | ||||
| Bulk Tank Capacity | 15L | Material Transmit | Inflatable Roller Auto Feeding and Take-up System | |
| Max. Media Taking up (40g paper) | 10000m | Max. Media Feeding(40g paper) | 100000m | |
| Speed | 1pass 1050㎡/h | Print Media | Transfer Paper | |
| *Tested on linear printing without feather function | 2pass 500㎡/h | |||
| Ink Type | Sublimation Ink, | Transmission | USB 3.0 | |
| Water Based Pigment Ink | Interface | |||
| Computer System | Win10 64 Bit or more | File Forms | TIFF, JPG, PDF, etc. | |
| Operate Environment | Temp.:18℃-30℃, Humidity: 35℃-65℃ | RIP Software | Maintop, FlexiPRINT, ONYX, Neostampa and etc. Maintop7.0(Standard Equipped) | |
| Printer Size | 4300*2850*2280mm | GW(KGS) | 2000 | |
| Package Size | 4430*1380*2220mm | Power Supply | 360-400V | |
| Print Power: 34KW | ||||
| Dryer Power: Max. 24KW | ||||
| Computer Configuration |
Hard Disk: 1T or more(SSD is recommended), RAM: 64G, GPU: ATI Mobility Memory 16G, CPU: Inteli9 Processor or above |
|||
| Transmission Interface: USB3.0+PCIE Optical Fiber | ||||
| Standard Configuration | Intelligent Drying System, Integrated Three Color Alarm System, Continuous Ink Supply System, Ten Thousand Meters Unwinding, Negative Pressure Ink Supply, Magnetic Levitation Motor Module | |||
Equipped Japan THK super mute SS+ linear guide rail, low noise, high precision, excellent durability.
The negative pressure ensures that the hydraulic pressure is stable during high-speed printing, which is not easy to cause the problems such as nozzle missing, ink misting and ink dripping, reducing losses.
Air filter unit reduces air bubbles in the ink, improves ink fluency, and reduces nozzle missing caused by air bubbles.
This Fedar Digital Textile Printer is equipped with 10,000-meter Feeding & take-up paper base, the 10,000-meter base paper can meet the printing demands for large quantities.

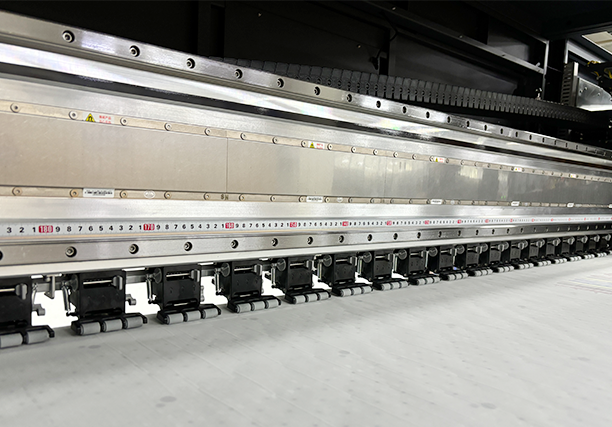

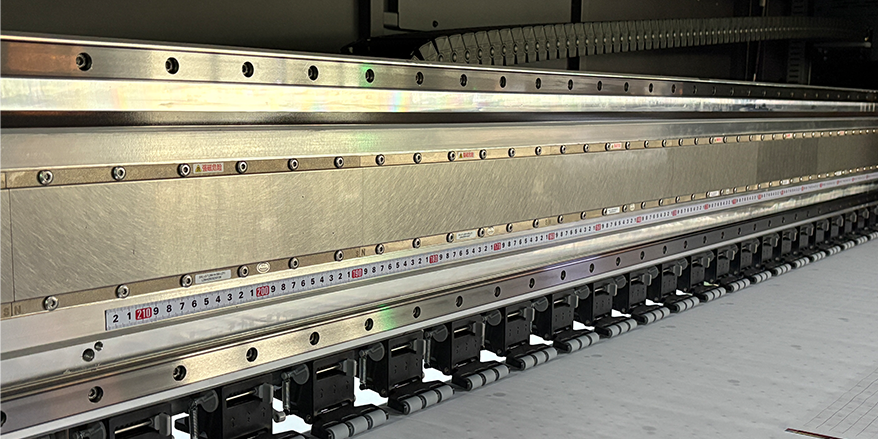

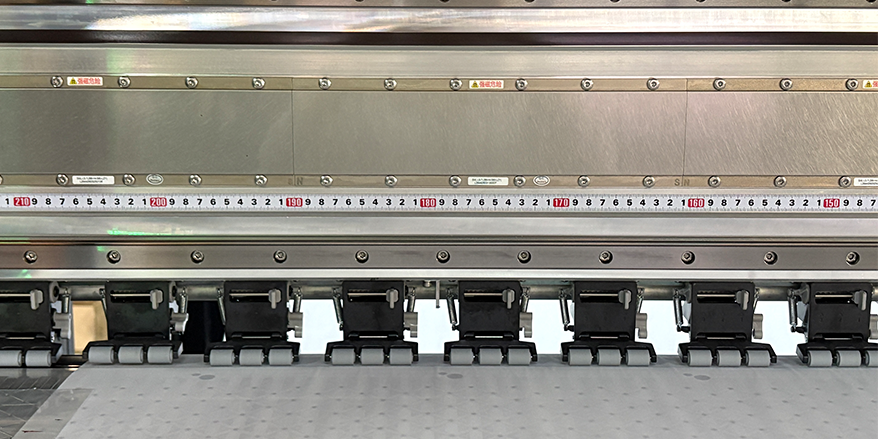

Imported THK Mute Guide Rail

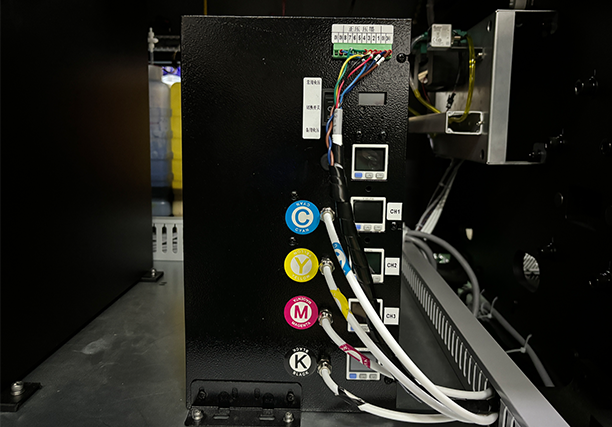

Negative Pressure Circulating

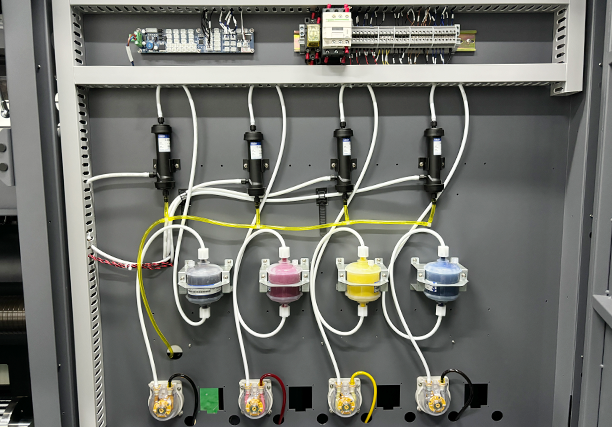

Air Filter Unit Of Ink Circuit

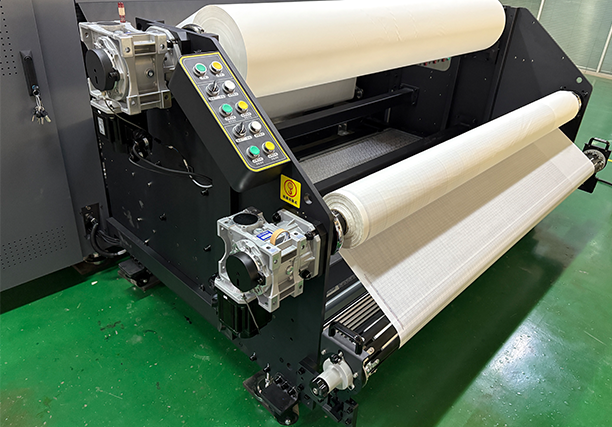

Feeding & Take-up Sysem
