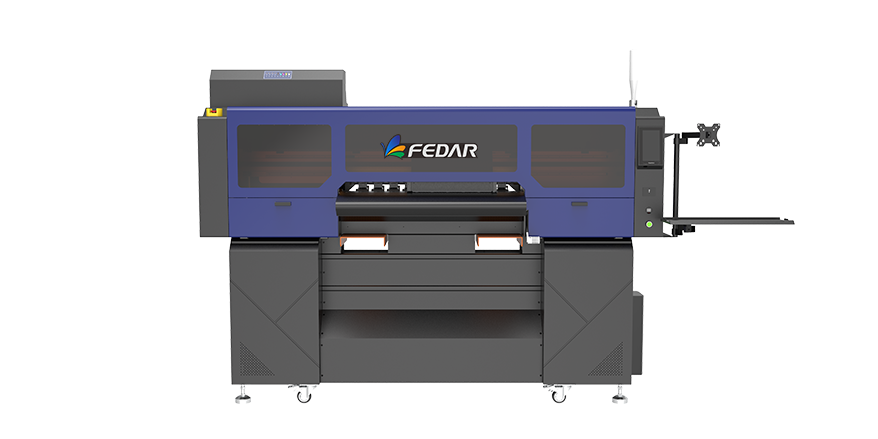

| FEDAR FD1808 DTF Printer | ||||
| Printhead | Epson I3200-A1 | Nozzle Quantity | 3200 | |
| Printhead Quantity | 8 | Print Width | 800mm | |
| Print Colors | CMYK+W | Print Height | 2-5mm | |
| Max. resolution（DPI） | 3200DPI | Media | PET Film | |
| Max speed CMYK(1.9m printing width, 5% feather) | 6pass | 39㎡/h | ||
| Speed *Tested on linear printing without feather Function | 6pass | 39㎡/h | ||
| 8pass | 32㎡/h | Head Moisture | Auto Head Cleaning and Moisturizing | |
| Method | ||||
| Ink Cycle | White Ink Stirring System | |||
| Bulk Tank Capacity | 300ML | Material Transmit | Single Motor System | |
| Ink Type | Pigment Ink | Transmission | USB 3.0 | |
| Interface | ||||
| Max. Media Taking up (40g paper) | 500m | Max. Media Feeding(40g paper) | 500m | |
| Computer System | Win7 or above | File Forms | JPG, TIF, PDF, etc. | |
| Operate Environment |
Temp.: 15℃-30℃, Humidity: 35℃-65℃ |
RIP Software | Maintop, FlexiPRINT | |
| Printer Size | 2450*910*1745mm | GW(KGS) | 440 | |
| Package Size | Power Supply | 110V/220V | ||
| 50/60HZ | ||||
| Computer Configuration | Hard Disk: 500G or more, GPU: ATI Discrete GPU, RAM: 8G or more, CPU: Intel i7 Processor | |||
This FEDAR Model: FD1808 DTF printer can reduce static and ink misting, ensure printing quality, and reject the outputs of media wrinkles.

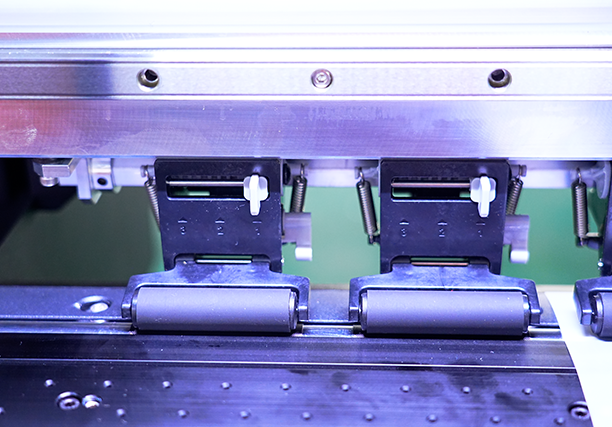

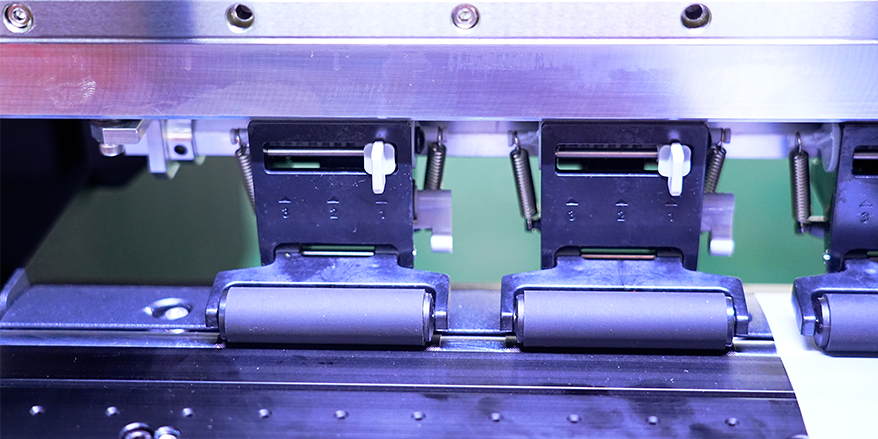

The FD1808 DTF printer adopt silent linear guide rails, lower noise, stable movement, low wear and long service life.

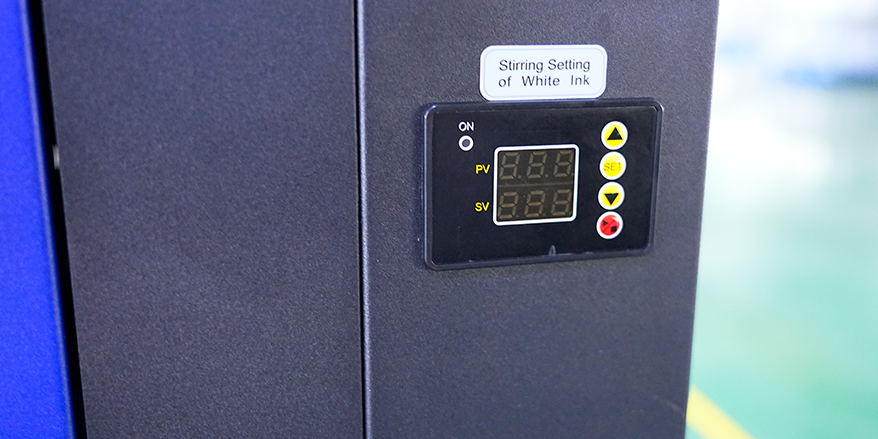

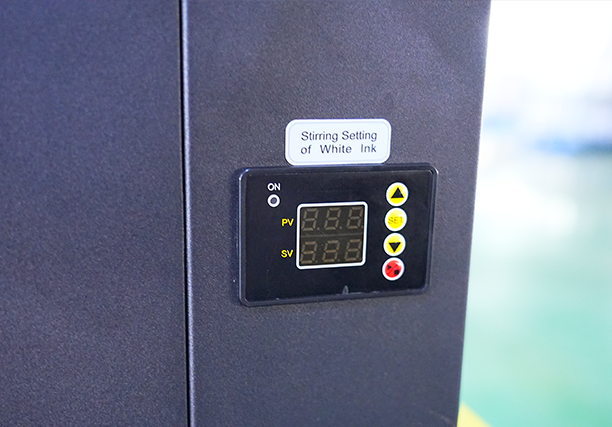

Customize the time for white ink circulation and stirring to make the white ink more uniform and prevent sedimentation.

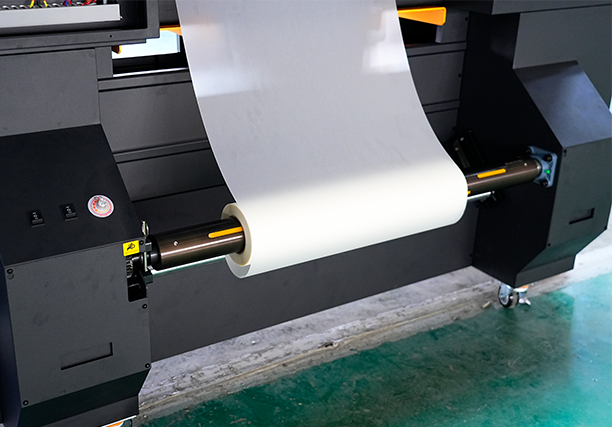

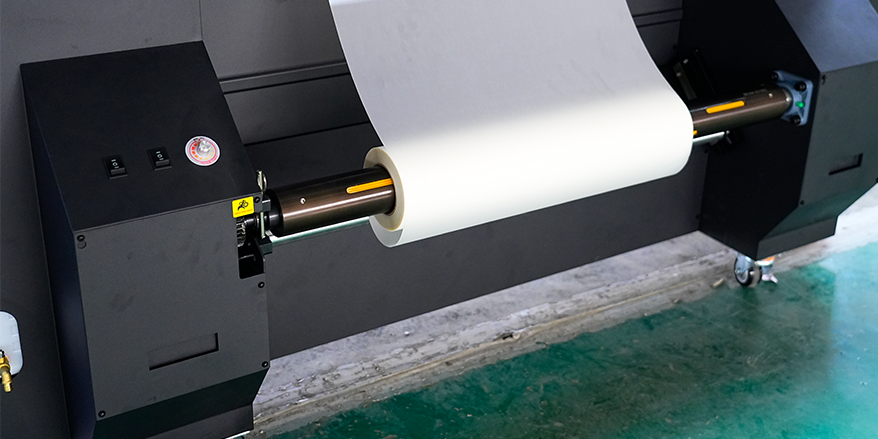

Equipped with a 500-meter air shaft unwinding and rewinding system, it automatically senses material feeding, ensuring more stable paper feeding.
Automatic cleaning Function
Guide Rail
Stirring Setting of White Ink
500-meter Air shaft Unwindingand Rewinding System
