FD70-4

    • Printhead Quantity: 4
    • Printhead: Epson I3200-A1
    • Print Width: 600mm
    • Print Colors: CMYK+W
    • Max.resolution(DPI): 3200DPI
    • Max speed CMYK: 4pass 22㎡/h
    • Ink Type: Pigment Ink
    • RIP Software: Maintop, Flexiprint

Products Parameters

  FD70  DTF Printer
Printhead Epson I3200-A1 Nozzle Quantity 3200
Printhead Quantity 4 Print Width 600mm
Print  Colors  CMYK+W Print Height 2-5mm
Max. resolution(DPI) 3200DPI Media Pyrograph Film
Max speed  CMYK(1.9m printing width, 5% feather) 4pass 22㎡/h Drying Method Extra Dryer Device
Speed             *Tested on linear printing without feather Function 4pass 22㎡/h Ink Supply Method Siphon Positive Pressure Ink Supply
6pass 14㎡/h Head Moisture Auto Head Cleaning and Moisturizing
Method
Ink Cycle Auto White Ink Cycle
Bulk Tank Capacity 220ML Material Transmit Single Motor System
Ink Type Pigment Ink Transmission Gigabit LAN
Interface
Max. Media Taking up (40g paper) 100m Max. Media Feeding(40g paper) 100m
Computer System Windows XP/Win7 File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment

Temp.: 15℃-30℃,

Humidity: 35℃-65℃

RIP Software Maintop, Flexiprint
Printer Size 1865*676*1840mm GW(KGS) 205
Package Size 2060*990*940mm Power Supply 210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max.3500W
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk: WG500G GPU: ATI Discrete GPU,
Memory: 4G, CPU: Intel I5/I7, G-Ethernet

Description

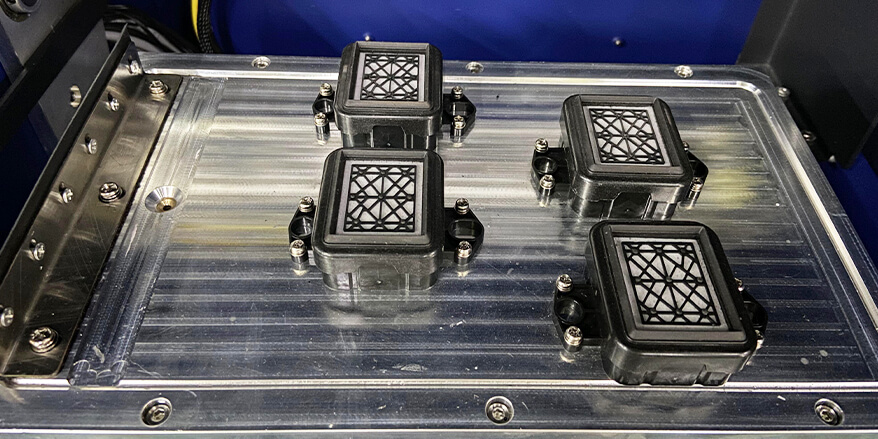

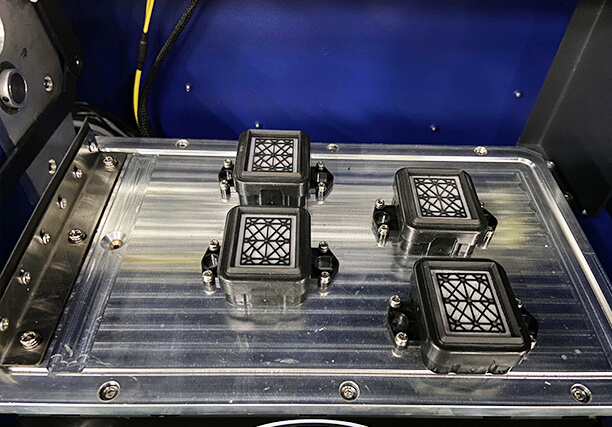

  • Capping Station

    Patented designed maintenance capping station. It's lifted up and down via column driven by motor in the middle, which greatly maintain the balance of capping comparing the traditional gear drive.

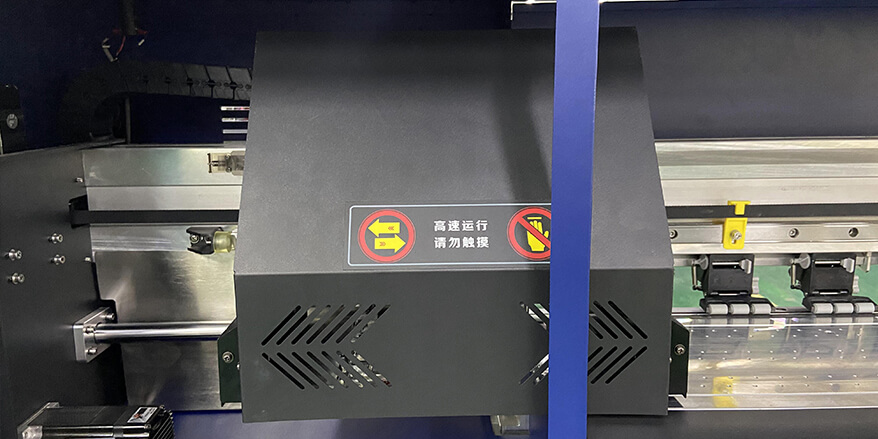

  • Carriage

    Anti-collision trolley frame.

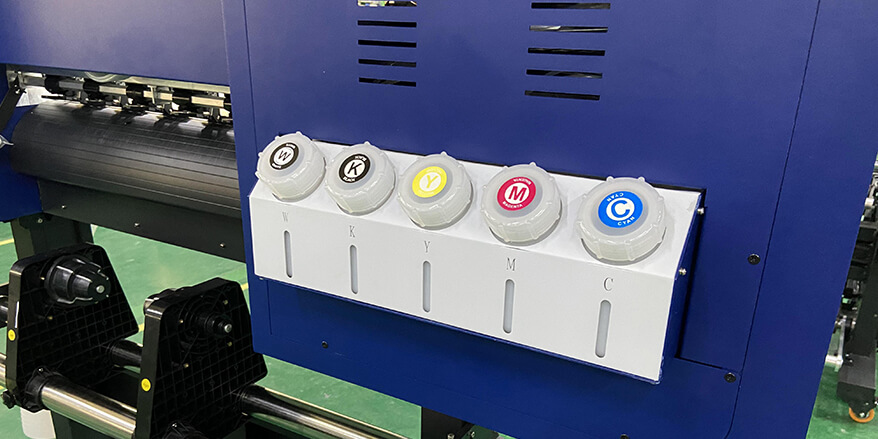

  • Ink Tank

    Equips 1.5 L big ink tank circulatory system and stirs white ink intermittently, the user can adjust it on printing software.

  • Pinch Rollers

    Multi - line pinch rollers more accurate paper feeding.

  • Mirror

    Left metal mirror design easily for operator to watch condition of printheads.

  • Motor

    Lead shine business integrated servo motors are used on both X&Y direction.

  • Ink Chain

    Import ink chain stable working during high speed printing.

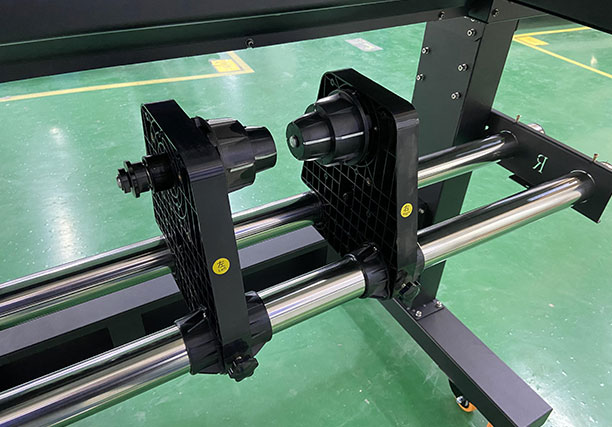

  • Feed & Take-up System

    A standard Feed&Take-up System.

Capping Station



Carriage



Ink Tank

Pinch Rollers

Mirror

Motor

Ink Chain

Feed & Take-up System
