FD6194E

  • Printhead Quantity: 4
  • Printhead: Epson I3200-A1
  • Print Width: 1900mm
  • Print Colors: CMYK/CMYK+4 COLORS
  • Max.resolution(DPI): 3200DPI
  • Max speed CMYK: 2pass 180㎡/h
  • Ink Type:Sublimation Ink,Water Based Pigment Ink
  • RIP Software: Printfactory, Maintop, Flexiprint, Onyx, Neostampa

Products Parameters

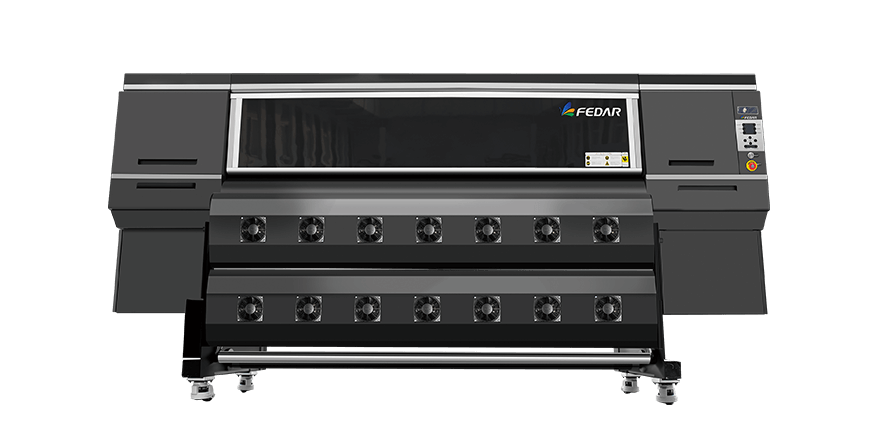

FD 6194E  Fedar Sublimation Transfer Paper Printing Printer
Printhead Epson I3200-A1 Nozzle Quantity 3200
Printhead Quantity 4 Print Width 1900mm
Print  Colors  CMYK/CMYK+4 COLORS Print Height 2-5mm
Max. resolution(DPI) 3200DPI Media Transmit Auto Media Feeding and
Taking-up System, Roll to Roll
Max speed  CMYK(1.9m printing width, 5% feather) 2pass 180㎡/h Drying Method Extra Dryer Device
Speed
*Tested on linear printing without feather function
2pass 180㎡/h Ink Supply Method Siphon Positive Pressure Ink Supply
4pass 110㎡/h Head Moisture
Method
Auto Head Cleaning and Moisturizing
6pass 90㎡/h Print Media Transfer Paper
Bulk Tank Capacity 3L Material Transmit  Inflatable Roller Auto Feeding and Take-up System
Ink Type Sublimation Ink,
Water based Pigment Ink
Transmission
Interface
Gigabit LAN
Max. Media Taking up (40g paper) 300m Max. Media Feeding(40g paper) 500m
Computer System Win7 64 Bit / Win10 64 Bit File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment

Temp.: 15℃-30℃,

Humidity: 35℃-65℃

RIP Software Printfactory, Maintop, Flexiprint, Onyx, Neostampa
Printer Size 3280*1335*1730mm GW(KGS) 960
Package Size 3470*1160*1900mm Power Supply 210-230V, 50/60HZ, 16A
Print Power: 1500W
Dryer Power: Max.7000W
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Intel I5/I7, Gigabit LAN
Standard Configuration Ink Level Alarm System

Description

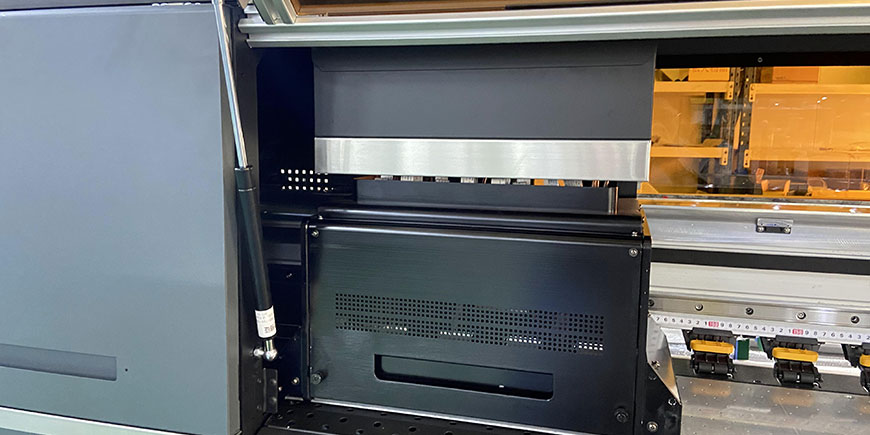

  • Carriage

    Industrial carriage design which can adjust carriage height for different paper, also has anti-collision system to protect head safe.

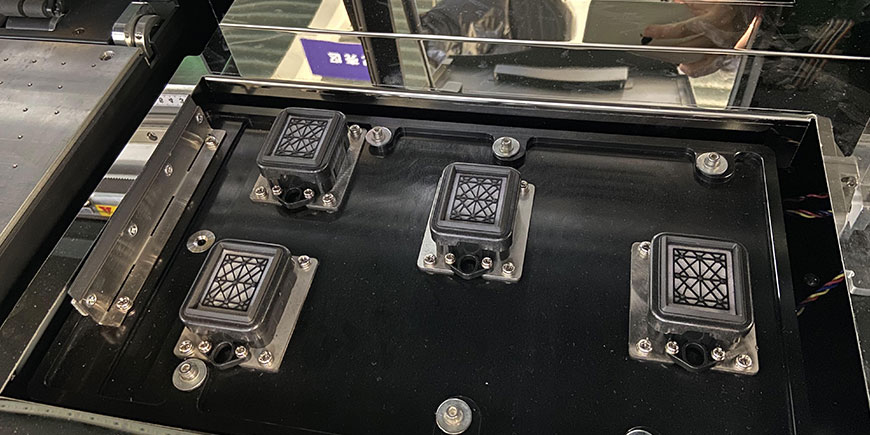

  • Capping Station

    Special design four heads capping station for good quality output and high speed print.

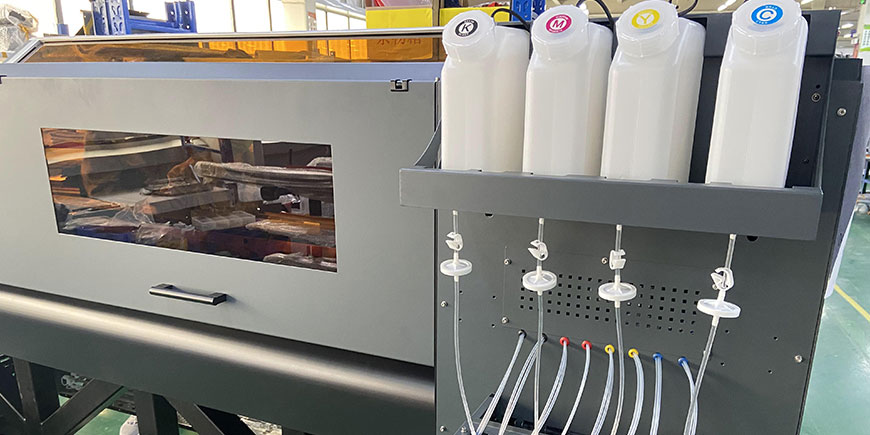

  • Ink Tank

    Using 4L big ink tank which can reduce fill ink times.

  • Dryer System

    Double big power extra dryers ensure drying printed paper efficiently.

  • Feeding & Take-up System

    Auto air shaft taking up system for transfer paper.

  • Pinch Rollers

    Smart pinch roller which you can control each one single.

  • Platform

    Advanced platform sucking design and aluminium body to improve print accuracy.

  • Front Heater

    Stable front feeding material to eliminate paper wrinkle effect.

Carriage

Capping Station

Ink Tank

Dryer System

Feeding & Take-up System

Pinch Rollers

Platform

Front Heater
