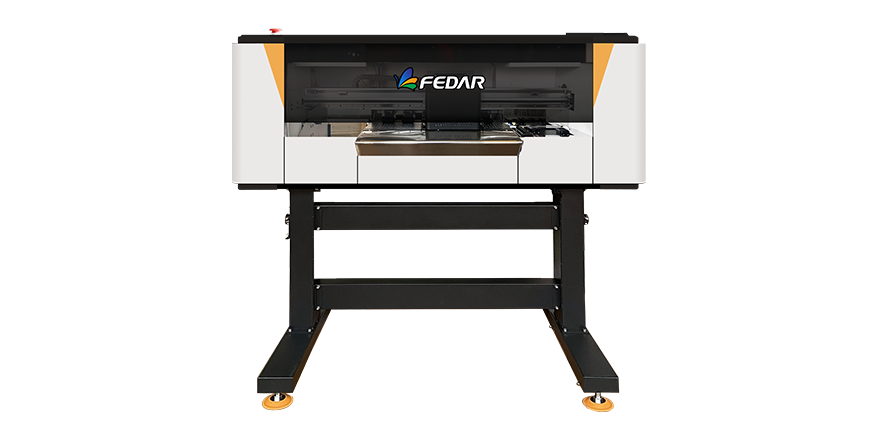

30cm DTF Printer FEDAR FD30

  • Model: FEDAR FD30 DTF Printer
  • Printhead Quantity: 2
  • Printhead: Epson XP600
  • Print Width: 300mm
  • Print Colors: CMYK+W
  • Max.resolution(DPI): 1080DPI
  • Max speed CMYK: 6pass 4㎡/h
  • Ink Type: Pigment Ink
  • RIP Software: Maintop, Flexiprint

Products Parameters

 FEDAR FD30 DTF Printer
Printhead Epson XP600 Nozzle Quantity 1080
Printhead Quantity 2 Print Width 300mm
Print  Colors  CMYK+W Print Height 2-5mm
Max. resolution(DPI) 1080DPI Media Pyrograph Film
Max speed  CMYK(1.9m printing width, 5% feather) 6pass 4㎡/h Drying Method Extra Dryer Device
Speed             *Tested on linear printing without feather Function 6pass 4㎡/h Ink Supply Method Siphon Positive Pressure Ink Supply
8pass 3㎡/h Head Moisture Auto Head Cleaning and Moisturizing
Ink Cycle Auto White Ink Cycle
Bulk Tank Capacity 220ML Material Transmit Single Motor System
Ink Type Pigment Ink Transmission Gigabit LAN
Max. Media Taking up (40g paper) 100m Max. Media Feeding(40g paper) 100m
Computer System Win7/Win10 File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment

Temp.: 15℃-30℃,

Humidity: 35℃-65℃

RIP Software Maintop, Flexiprint
Printer Size 1720*650*1400mm GW(KGS) 210
Package Size 1200*650*620mm Power Supply 210V, 50/60HZ, 10A
Print Power: 1000W
Dryer Power: Max.3500W
Computer Configuration Hard Disk: HARD DISK: 500G or more,GPU: ATI Discrete GPU
Memory: 8G or more, CPU: Intel i5 Processor

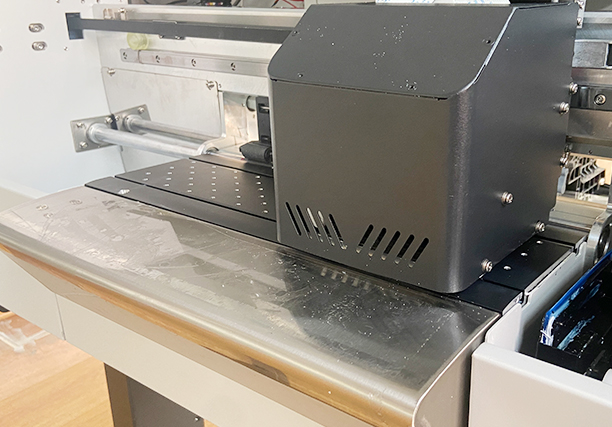

  • Capping Station

    This FEDAR Model:FD30 DTF printer is equipped with patented designed maintenance capping station. It's lifted up and down via column driven by motor in the middle, which greatly maintain the balance of capping comparing the traditional gear drive.

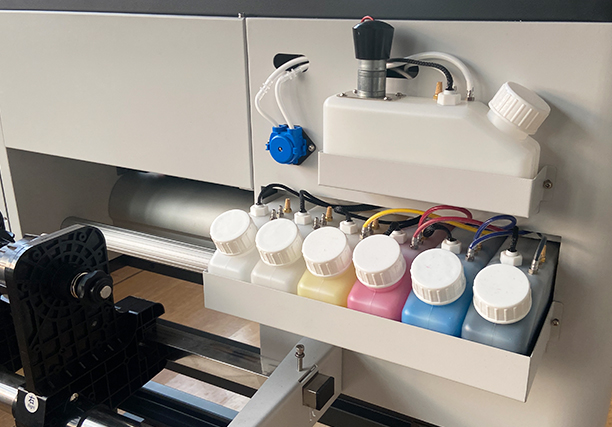

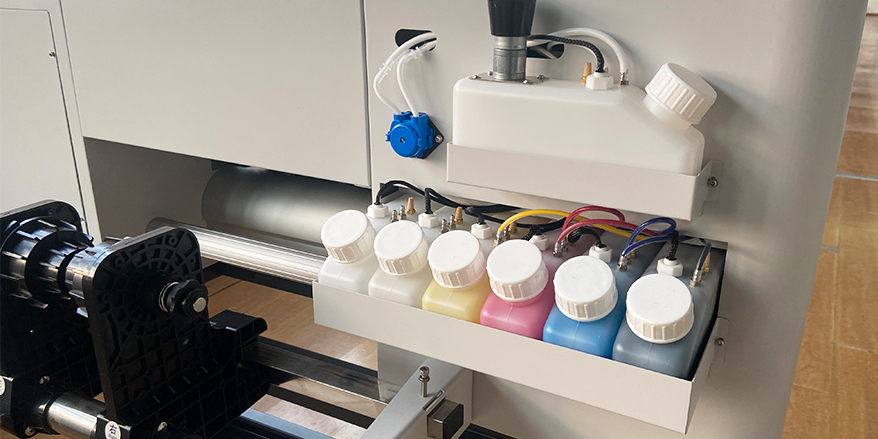

  • Ink Tank

    The top grade digital DTF printer equips 1.5 L big ink tank circulatory system and CMYK +W ink printingOriginal ink, printing bright,high degree of color reduction.

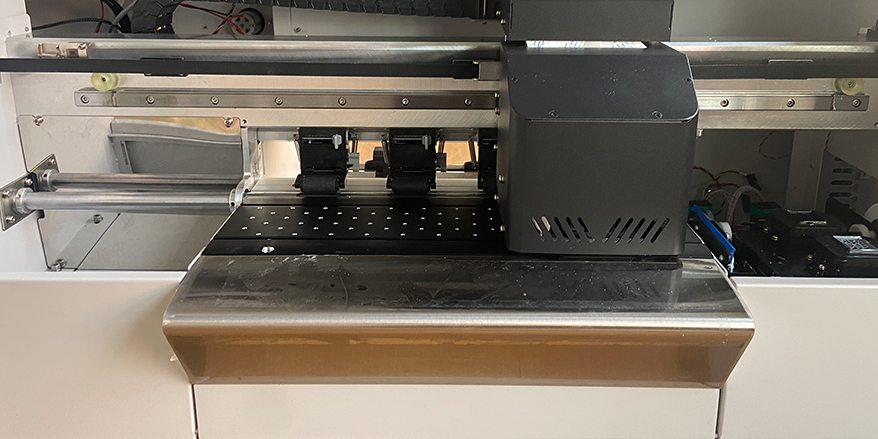

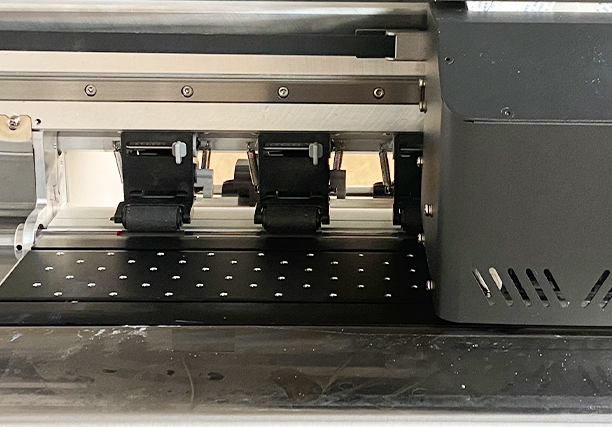

  • Pinch Rollers

    Multi - line pinch rollers make paper feeding more accurate during this FD30 DTF digital printer working process.

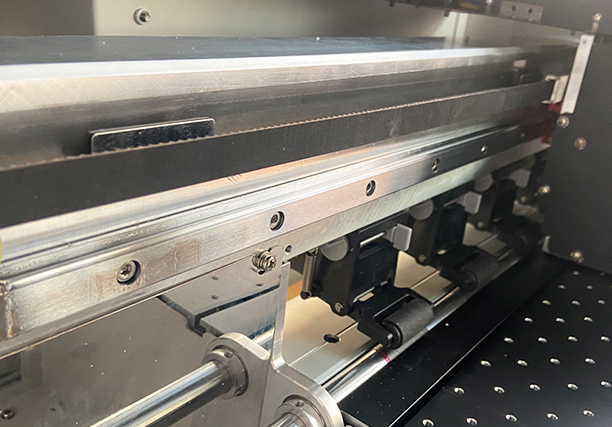

  • Guide Rail

    The FD30 DTF printer uses imported silent linear guide rail.

Capping Station

Ink Tank

Pinch Rollers

Guide Rail
