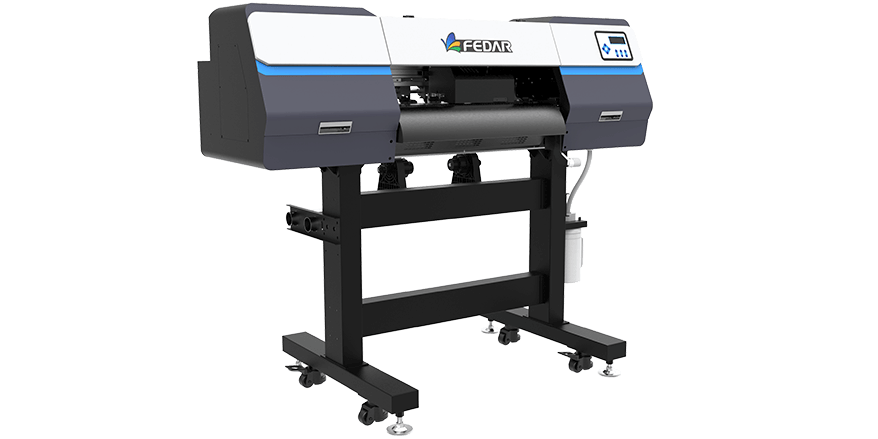

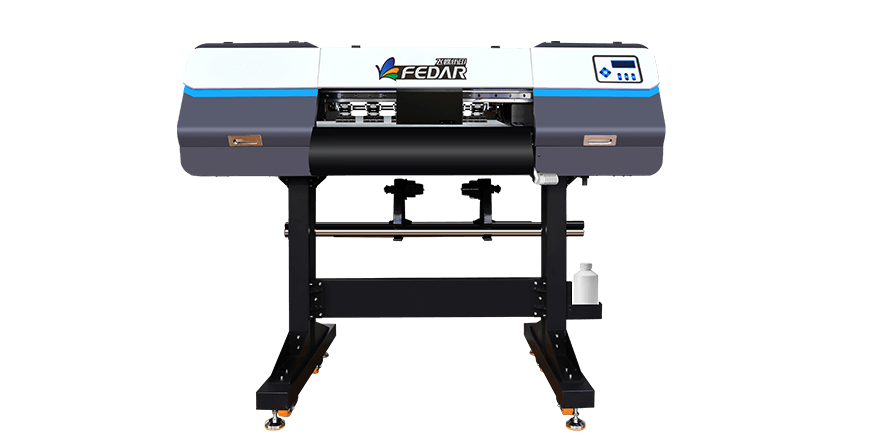

FD70

  • Printhead Quantity: 2
  • Printhead: Epson I3200-A1
  • Print Width: 600mm
  • Print Colors: CMYK+W
  • Max.resolution(DPI): 3200DPI
  • Max speed CMYK: 6pass 8㎡/h
  • Ink Type: Cycle White Ink Supply System
  • RIP Software: Maintop, Flexiprint

Products Parameters

Model FD70-2
Printhead Quantity 2
Printhead Epson I3200-A1
Resolution: 3200DPI
Head Cleaning: Auto cleaning, auto flashing and moisturize
Max. resolution(DPI) 3200DPI
Print Width 600mm
Print  Colors  CMYK+W
Max speed  CMYK(1.9m printing width, 5% feather) 6pass 8㎡/h
Speed
*Tested on linear printing without feather function
6pass  8m²/h
8pass  6m²/h
Bulk Tank Capacity 1.5L
Material Transmit  Single Motor System
Ink Type Pigment ink
Media PET Film
Max. Media Taking up (40g paper) 100m
Max. Media Feeding(40g paper) 100m
Media Feeding Normal Feeding System
Transmit Port Ethernet
RIP Software Maintop, Flexiprint
Computer System Win 7/Win 8/Win 10
Color Management ICC Profile
Ink Supply Cycle White Ink Supply System
Work Environment Temp.: 11℃-30℃,  Humidity: 35℃-65℃
PC Configuration Hard Disk: NTFS, HARD Disk: WG500G GPU: ATI Discrete GPU,
CPU: Intel I7, Gigabit LAN, Memory: More than 8G DD4R
Power AC220V, 50HZ/60HZ
Printer Size  1630*835*1350mm
Package Size 1750*990*750mm
GW(KGS) 205

Description

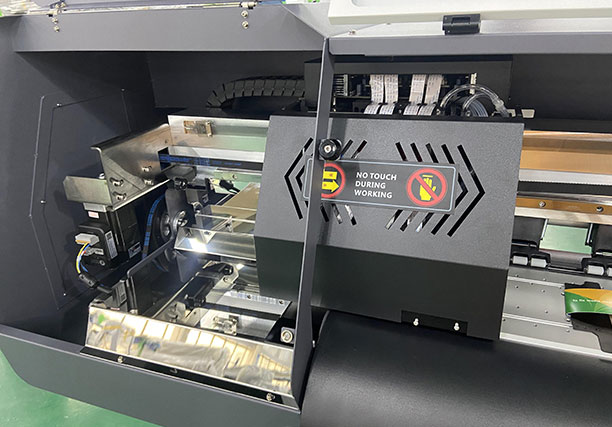

  • Carriage

    Height adjustable carriage, adjust the head position according to the media.

  • Motor

    LeadShine business integrated servo motors are used on both X&Y direction.

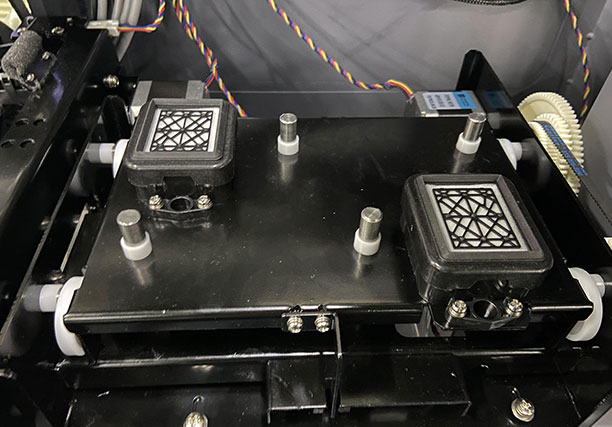

  • Capping Station

    Adopt automatic lifting capping, clean, pump and moisturize automatically.

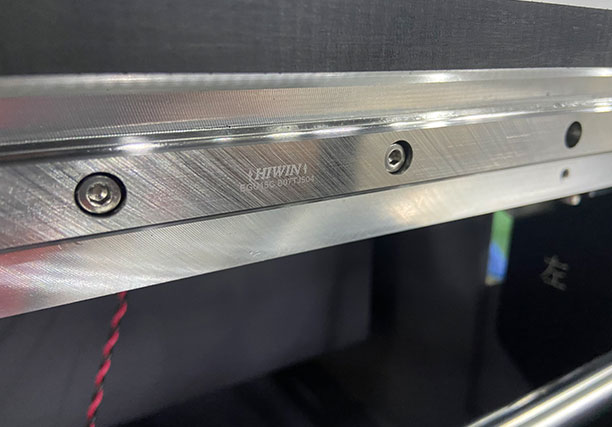

  • Guide Rails

    Adopt HINWIN guide rail, which makes the printer more stable, longer working life, lower noise.

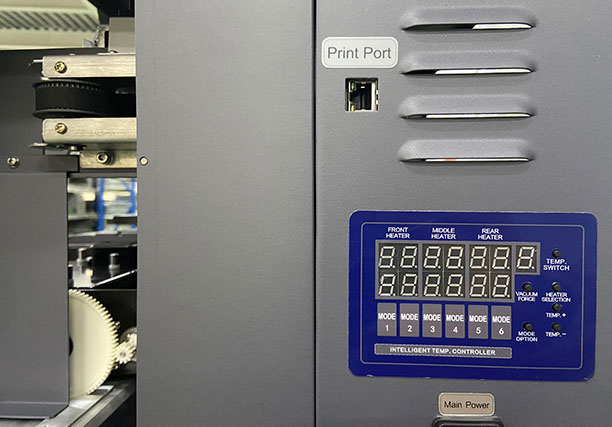

  • Temperature Control

    3-section body -heater to make sure fast drying, each heater is independent on controlling and mode.

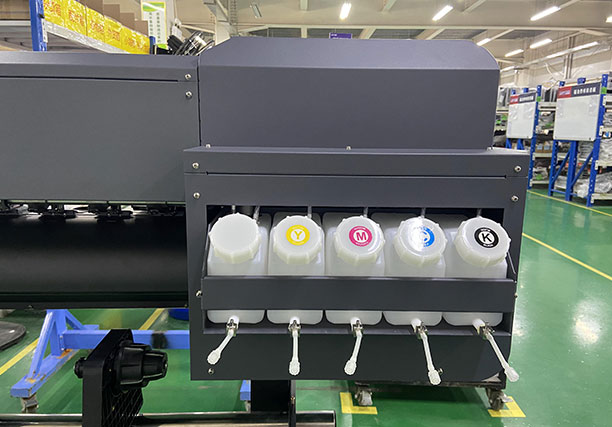

  • Ink Tank

    Equips ink circulatory system and stirs white ink intermittently, the user can adjust it on printing software.

  • Beam

    High-precision machining beam providing stability of carriage movement.

Carriage

Capping Station

Guide Rails

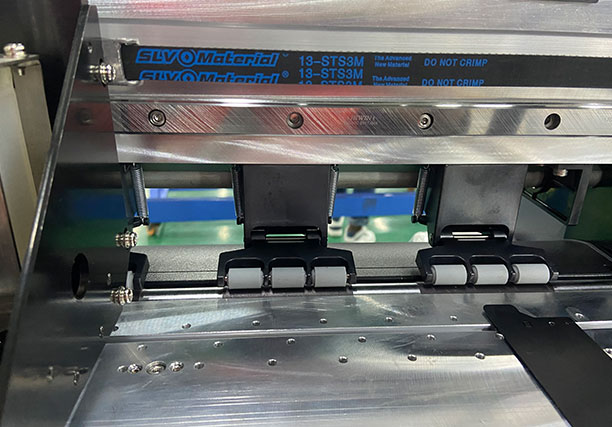

Pinch Rollers

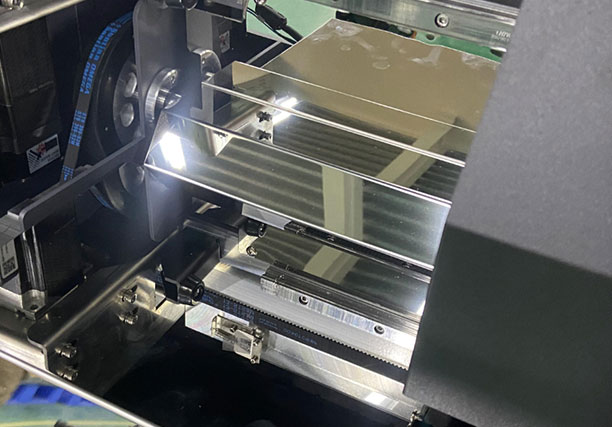

Mirror

Temperature Control

Ink Tank

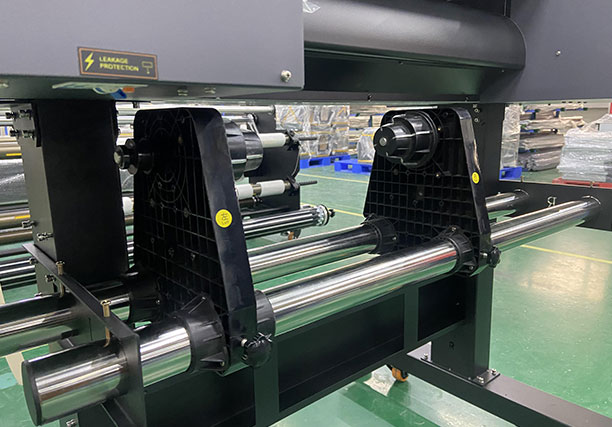

Feed & Take-up System
